SKU: 4307-2RS-EU

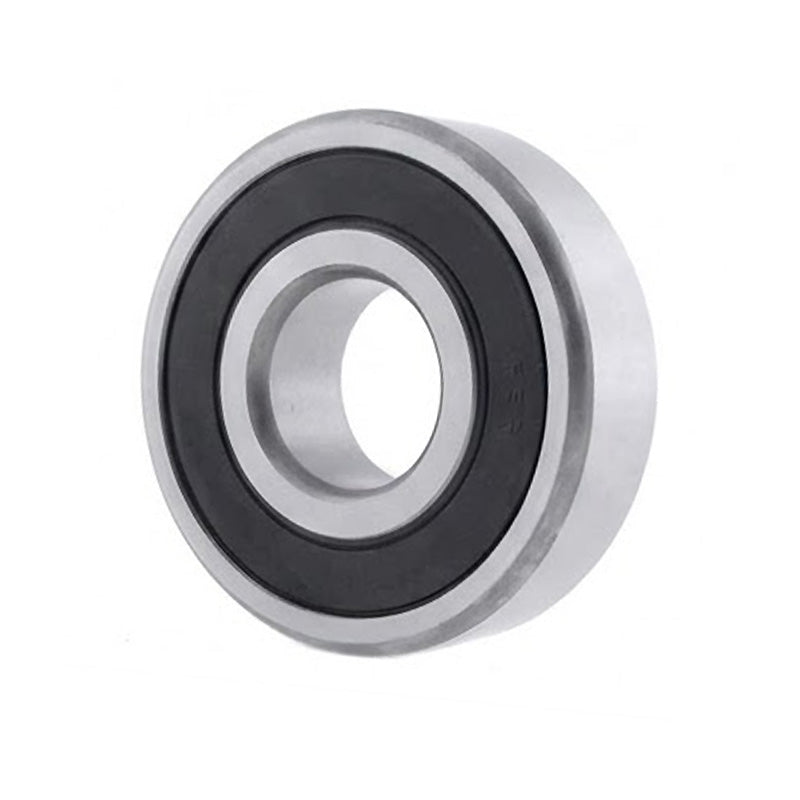

43072RS Budget Sealed Double Row Deep Groove Ball Bearing 35x80x31mm
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Sealed Double Row Deep Groove Ball Bearings: Similar in design to single row deep groove ball bearings, they have two parallel deep grooves and high conformity between the balls and the raceways. They are able to carry axial loads in both directions in addition to radial loads. These are particularly suited to applications where a single row ball bearing's load bearing capacity would be insufficient. Made with the same bore and outside diameters as the single row series they are a little bit wider but offer far greater load bearing ability |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 80mm
- Width:
- 31mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 35mm |
|---|---|
| D | 80mm |
| B | 31mm |
| Dynamic load C | 50.7 kN |
| Static load Co | 38 kN |
| Fatigue load limit Pu | 1.63 kN |
| Reference speed | 14000 rpm |
| Limiting speed | 7500 rpm |
| Weight | 0.69 kg |
| d1 | 49.5mm |
| D1 | 65.4mm |
| r1r2 min | 1.5mm |
| da min | 44mm |
| Da max | 71mm |
| ra max | 1.5mm |
| kr | 0.06 |
| fo | 13 |
