SKU: 44162/44363D/X2S44162-TIM

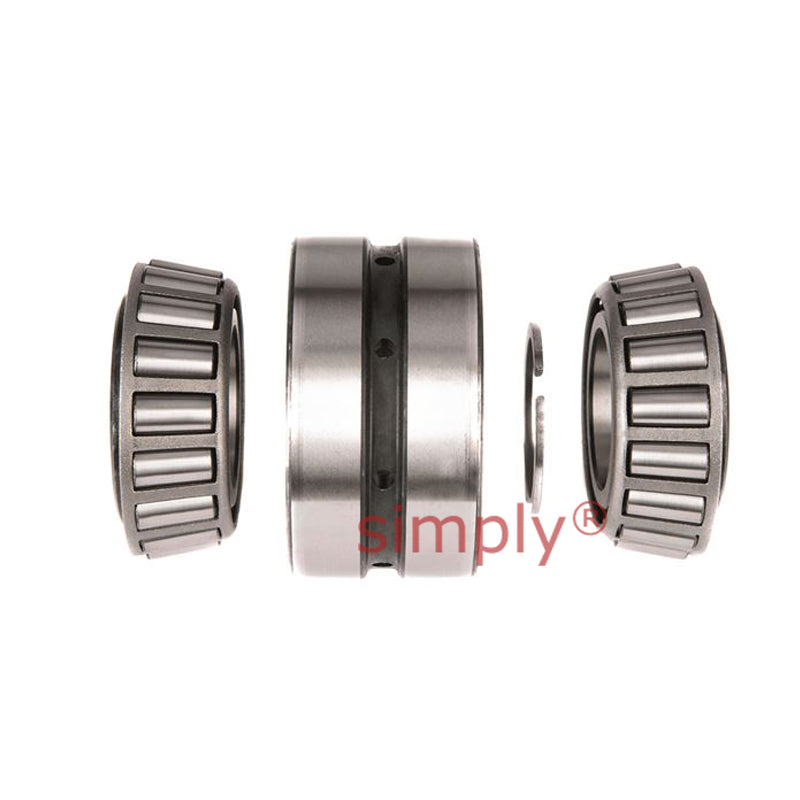

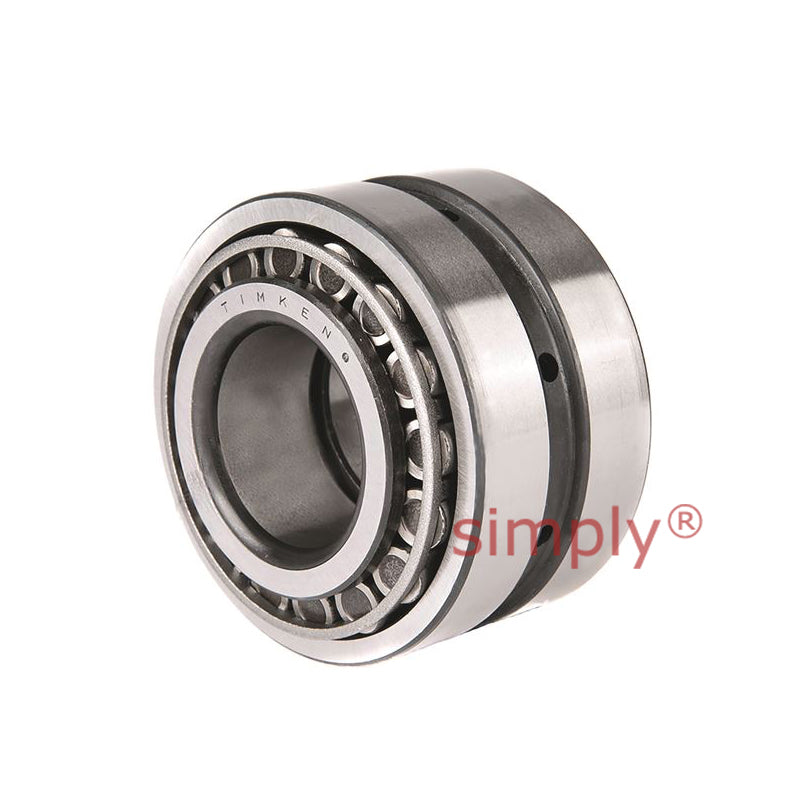

Timken 44162/44363D/X2S44162 TDO Double Outer Race Taper Roller Bearing 1.625x3.625x2.1875x1.5625 inch
Timken 44162/44363D/X2S44162 TDO Double Outer Race Taper Roller Bearing 1.625x3.625x2.1875x1.5625 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 41.28mm = 1.625 inch
- Outside Diameter:
- 92.08mm = 3.625 inch
- Width:
- 55.56mm = 2.1875 inch
Technical
Technical
| d | 41.275mm = 1.625 inch |
|---|---|
| D | 92.075mm = 3.625 inch |
| T | 55.562mm = 2.1875 inch |
| C | 39.688mm = 1.5625 inch |
| Dynamic (1) C1 | 136000N |
| Factors (5) e | 0.78 |
| Factors (5) Y1 | 0.86 |
| Factors (5) Y2 | 1.29 |
| Dynamic (2) C90 | 20200N |
| Dynamic (2) Ca90 | 27000N |
| Dynamic (2) C90(2) | 35200N |
| Factors (5) K | 0.75 |
| Shaft max shaft fillet radius R(3) | 2.3mm = 0.09 inch |
| Shaft backing shoulder diameter db | 57mm = 2.24 inch |
| Housing max shaft fillet radius r(3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Da | 85mm = 3.35 inch |
| G1 | 22.9 |
| G2 | 8.71 |
| Cg | 0.0899 |
