• 450X5SPA 450mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
  • 450X5SPA 450mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
1 2

SKU: 450SPA5-MB

450X5SPA 450mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)

450X5SPA 450mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
$180.38 ex VAT
$180.38 ex VAT
Sale Sold out

In stock

Price Break
3+ $120.83
5+ $114.04
9+ $112.68
19+ $111.32
49+ $109.97
74+ $108.61
99+ $101.82
199+ $100.46
249+ $99.10
499+ $97.75
999+ $95.03

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
5
Outside Diameter:
456.2mm
Pitch Diameter:
450mm
Max Bore:
90mm

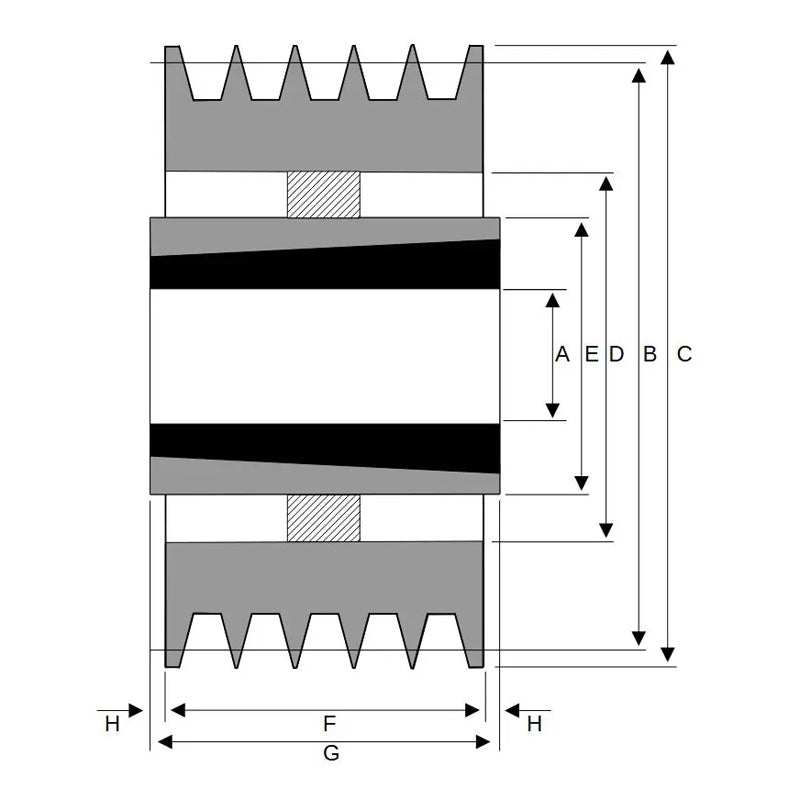

Technical
Number of Grooves 5
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3525+tapered+locking+bush">3525 Click Here</a>
Pitch Diameter B 450mm
Overall Outer Diameter C 456.2mm
Max Bore A 90mm
Outer Hub Diameter E 175mm
Overall Sheave Depth F 80mm
Bush Seat Length G 65mm
Inner Recess Diameter D 415mm
Inner Recess Length H 4.5mm
