SKU: 450SPZ4-MB

450X4SPZ 450mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)

Name: 450X4SPZ 450mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
Brand: Major Brand
SKU: 450SPZ4-MB
Price: 235.63 USD
Availability: InStock

$235.63 ex VAT

Sale Sold out

In stock

Price Break

3+ $157.83

5+ $148.97

9+ $147.19

19+ $145.42

49+ $143.65

74+ $141.87

99+ $133.01

199+ $131.23

249+ $129.46

499+ $127.68

999+ $124.14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Major Brand - High Quality
Grooves:: 4
Outside Diameter:: 454.6mm
Pitch Diameter:: 450mm
Max Bore:: 75mm

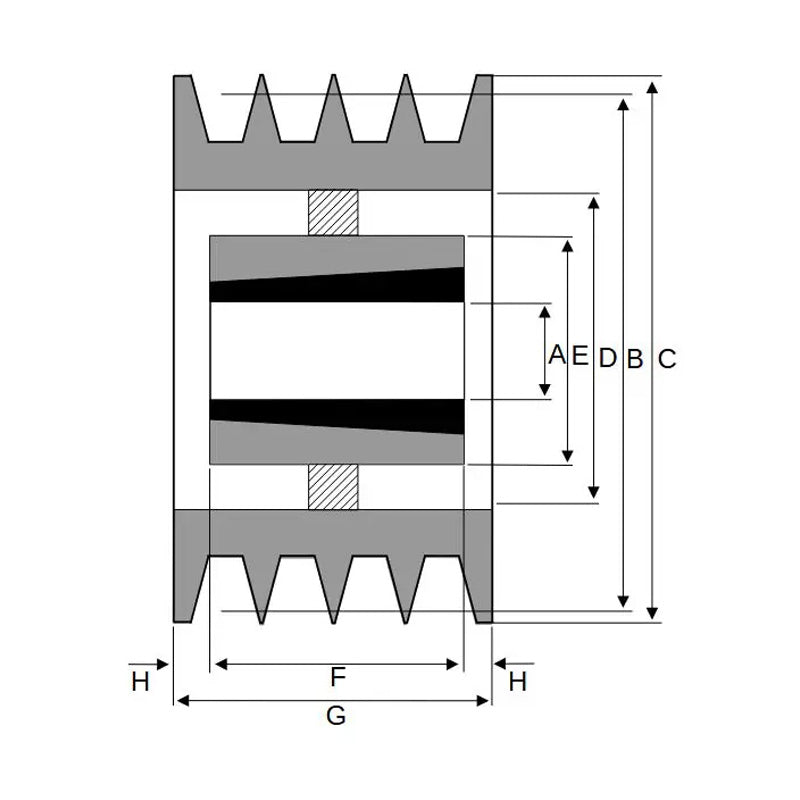

Technical

Number of Grooves	4
Bush	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3020+tapered+locking+bush">3020 Click Here</a>
Pitch Diameter B	450mm
Overall Outer Diameter C	454.6mm
Max Bore A	75mm
Outer Hub Diameter E	146mm
Overall Sheave Depth F	52mm
Bush Seat Length G	51mm
Inner Recess Diameter D	421mm
Inner Recess Length H	0.5mm
