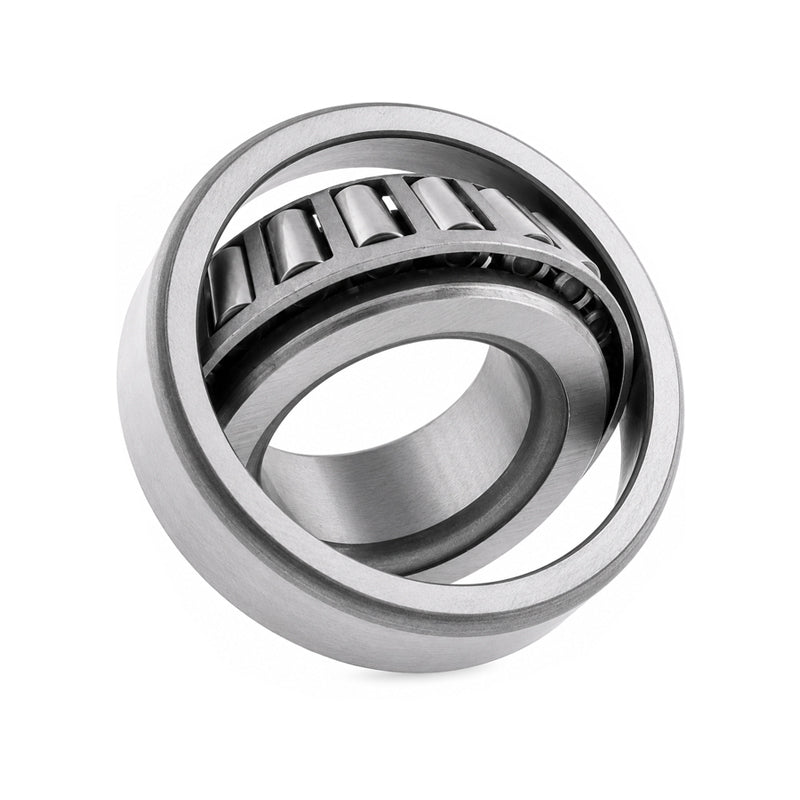

• Timken 47490/47420 TS Single-Row Taper Roller Bearing 2.8125x4.7244x1.2813 inch
  • Timken
1 2

SKU: 47490/47420-TIM

Timken 47490/47420 TS Single-Row Taper Roller Bearing 2.8125x4.7244x1.2813 inch

Timken 47490/47420 TS Single-Row Taper Roller Bearing 2.8125x4.7244x1.2813 inch
$227.62 ex VAT
$227.62 ex VAT
Sale Sold out

In stock

Price Break
10+ $152.47
20+ $143.90
30+ $142.19
40+ $140.47
50+ $138.76
75+ $137.05
100+ $128.48
200+ $126.77
250+ $125.06
500+ $123.34
1000+ $119.92

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:
Timken - High Quality
Inside Diameter:
71.44mm = 2.813 (2-13/16) inch
Outside Diameter:
120mm = 4.724 inch
Width:
32.55mm = 1.281 (1-9/32) inch
Technical
d 71.438mm = 2.8125 inch
D 120mm = 4.7244 inch
T 32.545mm = 1.2813 inch
Dynamic (1) C1 166000N
Factors (5) e 0.36
Factors (5) Y 1.67
Dynamic (2) C90 42900N
Dynamic (2) Ca90 26500N
Factors (5) K 1.62
Static C0 249000N
Bearing B 32.545mm = 1.2813 inch
Bearing C 26.195mm = 1.0313 inch
Bearing a(3) -6.4mm = -0.25 inch
Shaft max shaft fillet radius R(4) 3.5mm = 0.14 inch
Shaft backing shoulder diameter da 79mm = 3.11 inch
Shaft backing shoulder diameter db 86mm = 3.39 inch
Housing backing shoulder diameter r(4) 3.3mm = 0.13 inch
Housing backing shoulder diameter Da 114mm = 4.49 inch
Housing backing shoulder diameter Db 107mm = 4.21 inch
Cage Aa 2.2mm = 0.09 inch
Cage Ab 1.9mm = 0.08 inch
G1 98.4
G2 26.3
Cg 0.1153
