• 475X3SPC 475mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
1 1

SKU: 475SPC3-MB

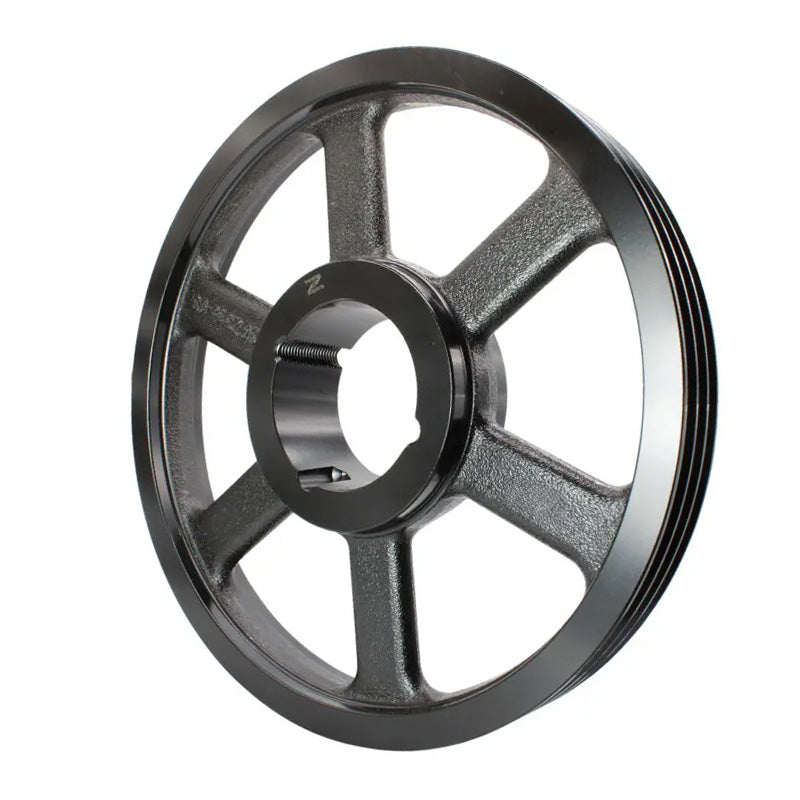

475X3SPC 475mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)

475X3SPC 475mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 3 Grooves (Bush not Incl.)
$323.23 ex VAT
$323.23 ex VAT
Sale Sold out

In stock

Price Break
3+ $216.51
5+ $204.34
9+ $201.91
19+ $199.48
49+ $197.05
74+ $194.61
99+ $182.45
199+ $180.02
249+ $177.58
499+ $175.15
999+ $170.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
3
Outside Diameter:
484.5mm
Pitch Diameter:
475mm
Max Bore:
90mm

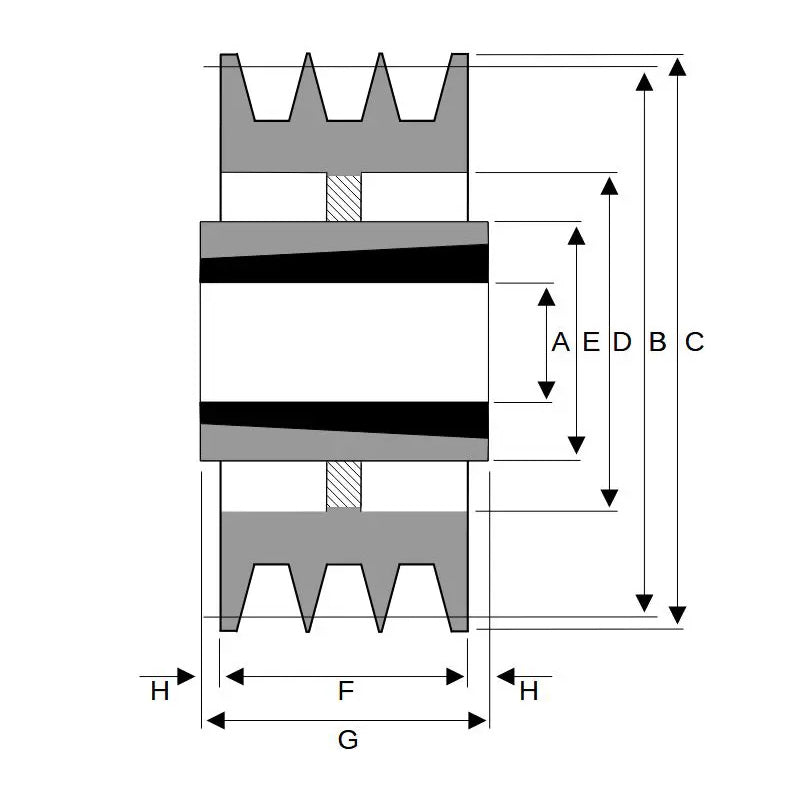

Technical
Number of Grooves 3
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3535+tapered+locking+bush">3535 Click Here</a>
Pitch Diameter B 475mm
Overall Outer Diameter C 484.5mm
Max Bore A 90mm
Overall Sheave Depth F 85mm
Bush Seat Length G 89mm
Inner Recess Length H 4mm
