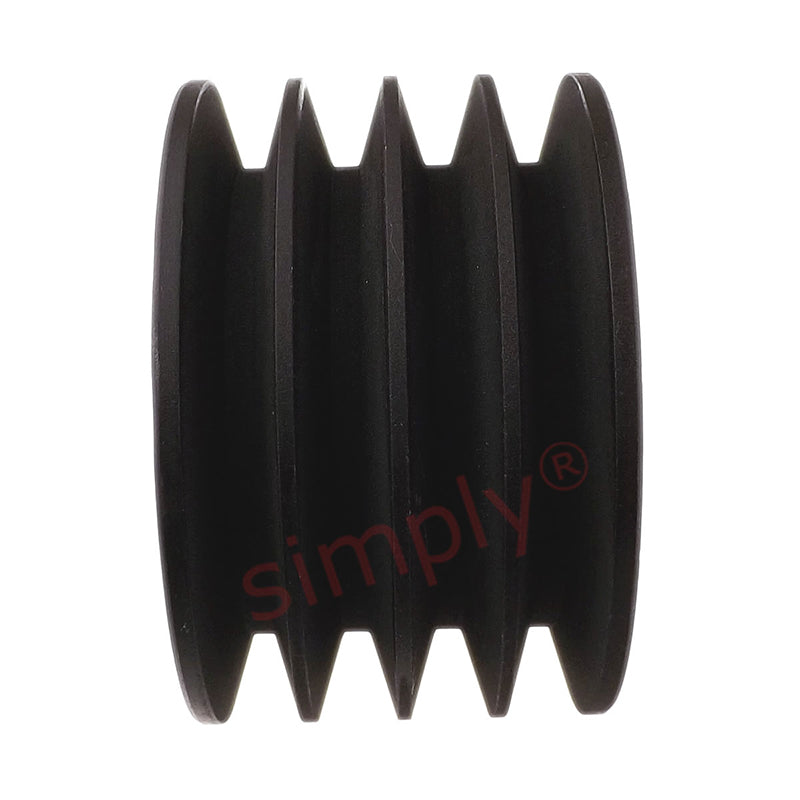

• 475X4SPC 475mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
1 1

SKU: 475SPC4-MB

475X4SPC 475mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)

475X4SPC 475mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
$462.20 ex VAT
$462.20 ex VAT
Sale Sold out

In stock

Price Break
3+ $309.60
5+ $292.20
9+ $288.72
19+ $285.25
49+ $281.77
74+ $278.29
99+ $260.90
199+ $257.42
249+ $253.94
499+ $250.46
999+ $243.50

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
4
Outside Diameter:
484.5mm
Pitch Diameter:
475mm
Max Bore:
90mm
Technical
Number of Grooves 4
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3535+tapered+locking+bush">3535 Click Here</a>
Pitch Diameter B 475mm
Overall Outer Diameter C 484.5mm
Max Bore A 90mm
Overall Sheave Depth F 110.5mm
Bush Seat Length G 89mm
Inner Recess Length H 10.8mm
