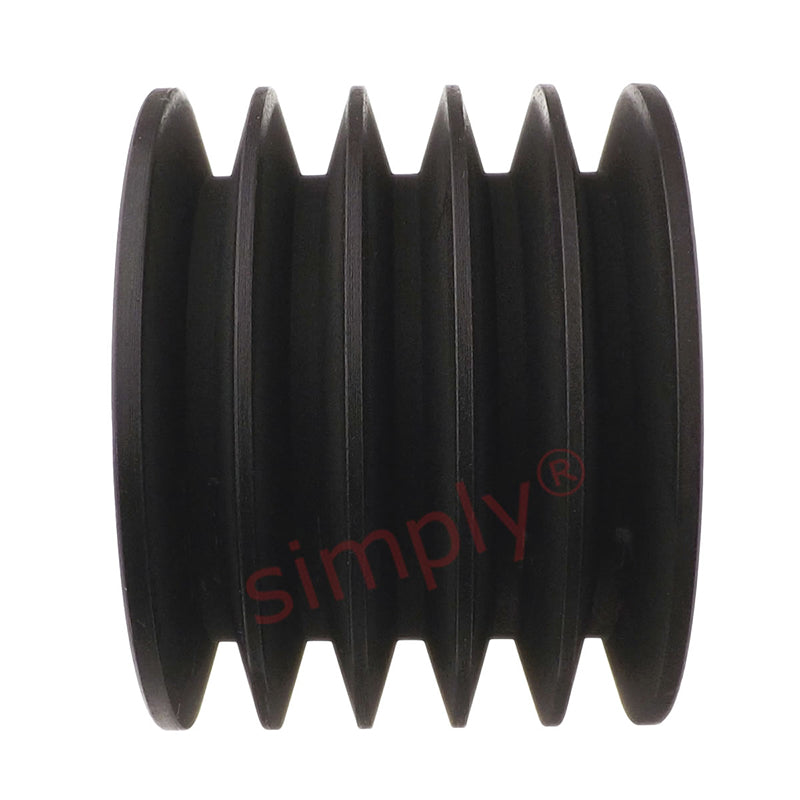

• 475X5SPC 475mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
1 1

SKU: 475SPC5-MB

475X5SPC 475mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)

475X5SPC 475mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
$421.30 ex VAT
$421.30 ex VAT
Sale Sold out

In stock

Price Break
3+ $282.20
5+ $266.35
9+ $263.18
19+ $260.01
49+ $256.84
74+ $253.66
99+ $237.81
199+ $234.64
249+ $231.47
499+ $228.30
999+ $221.96

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
5
Outside Diameter:
484.5mm
Pitch Diameter:
475mm
Max Bore:
100mm
Technical
Number of Grooves 5
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=4040+tapered+locking+bush">4040 Click Here</a>
Pitch Diameter B 475mm
Overall Outer Diameter C 484.5mm
Max Bore A 100mm
Overall Sheave Depth F 136mm
Bush Seat Length G 102mm
Inner Recess Length H 17mm
