SKU: 4MM.WSOC

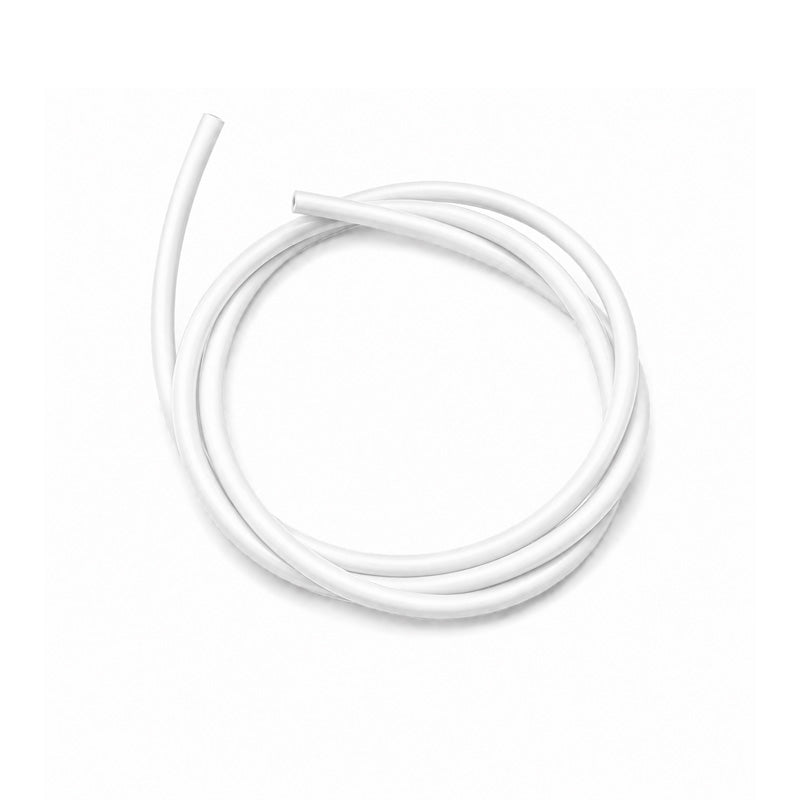

4mm Section WHITE SILICONE O-Ring Cord - Per Metre - Allow 7-10 Days
In stock
Couldn't load pickup availability
Share this product
Description
White Silicone Rubber O Ring Cord: O-Ring Cord is supplied as a continuous extruded cord. O-ring cord can be used to fabricate custom o-rings where the standard sizes are not suitable. O-rings are probably the most widely used and simplest types of seal they are found everywhere from plumbing installations to the space shuttle, they are common in engines and gearboxes, garden hoses, pumps etc. Silicone seals offer a wide temperature range and have excellent resistance to ozone, weathering, and aging as well as good insulating and physically neutral properties. Retention of properties of silicone at high temperature is superior to most other elastic materials. Many forms of silicone are by design hygienic however for use within the food industry they need specific certification, available on request. They can be used as face-to-face seals (like a gasket) or as shaft seals and facilitate both rotary and linear movement. They have a wide operating temperature range from - 55 deg Celsius up to + 225 deg Celsius and a high degree of chemical resistance
Benefits: Excellent sealing properties and durability, wide temp range, high resistance to many chemicals and petroleum-based fuels including petrol, diesel, LPG
Material: Silicone Rubber (VMQ)
Note: While silicone o-rings are available in a wide range of colours, (this is only for identifying purposes) the most common colours are, red, clear, white and black.
Due to packaging limitations, 50M plus orders may not arrive spooled as pictured.
- Brand / Quality:
- Simply Silicone O-Ring - High Quality
- Cross Section:
- 4mm
- Hardness:
- * 70 Shore (Most Common)
Technical
| --- | O-Ring Cord Dimensions |
|---|---|
| Cord Thickness (w) | 4mm |
| --- | Physical Properies |
| Colour | White |
| Material | White Silicone Rubber |
| Hardness Shore A | 70 |
| Temperature Range | -55 to 225°C |
| Tensile Strength | 6 N/mm squared |
| Elongation Breaking Point | 150 to 197 % |
| Specific Gravity | 1.29 |
| Weight (each) | 500000 kg |
| --- | Heat Aging at 100°C for 70 Hours |
| Hardness Change Point | +/-10 % |
| Tensile Strength Change | +/-25 % |
| Elongation Change | -30 % |
