SKU: 4T-16150/16282-NTN
NTN 4T-16150/16282 Tapered Roller Bearing Cup and Cone Set 1.5x2.8346x0.7480 inch
NTN 4T-16150/16282 Tapered Roller Bearing Cup and Cone Set 1.5x2.8346x0.7480 inch
Regular price
$83.27
ex VAT
Regular price
Sale price
$83.27
ex VAT
In stock
Price Break
3+
$55.78
5+
$52.64
10+
$52.02
25+
$51.39
49+
$50.76
74+
$50.14
99+
$47.00
199+
$46.38
249+
$45.75
499+
$45.12
999+
$43.87
Quantity
Couldn't load pickup availability
Description
Description
NTN Imperial Taper Roller Bearings: Designed to carry heavy radial loads and single direction thrust loads.
Supplied as a two-part set consisting of the cone inner part where the rollers and cage are located (fits on the shaft) and the outer cup part (fits in the housing).
NTN Europe is a world-renowned leader in the bearing manufacturing sector and their tapered roller bearings are no exception.
Manufactured to exacting standards you can be assured of the quality of NTN products.
Benefits: NTN quality assured, Socially and environmentally responsible manufacturer.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 38.1mm = 1.5 (1-1/2) inch
- Outside Diameter:
- 72mm = 2.835 inch
- Width:
- 18.999mm = 0.748 inch
- Style:
- Taper Roller Bearing
Technical
Technical

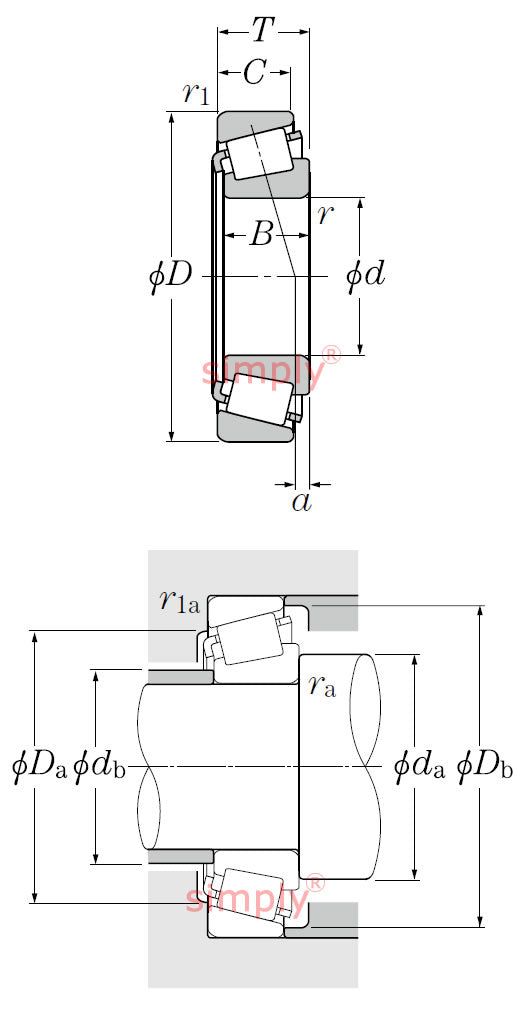

| --- | Bearing dimensions |
|---|---|
| d | 1.5 inch (38.1mm) |
| D (inch) | 2.8346 inch (71.999mm) |
| T | 0.7480 inch (18.999mm) |
| B | 0.813 inch (20.638mm) |
| C | 0.56 inch (14.237mm) |
| --- | Speeds and loads |
| C<sub>r</sub> | 53kN |
| C<sub>or</sub> | 58.5kN |
| Speed in grease | 5300rpm |
| Speed in oil | 7000rpm |
| --- | Abutment dimensions |
| d<sub>a</sub> | 49.5mm |
| d<sub>b</sub> | 43mm |
| D<sub>a</sub> | 63mm |
| D<sub>b</sub> | 67mm |
| r<sub>as</sub> max | 3.5mm |
| r<sub>1as</sub> max | 1.5mm |
| Load center<sup>2</sup> | 4.2mm |
| Constant e | 0.4 |
| Axial load factor Y<sub>2</sub> | 1.49 |
| Axial load factor Y<sub>0</sub> | 0.82 |
| Weight | 0.331kg |
