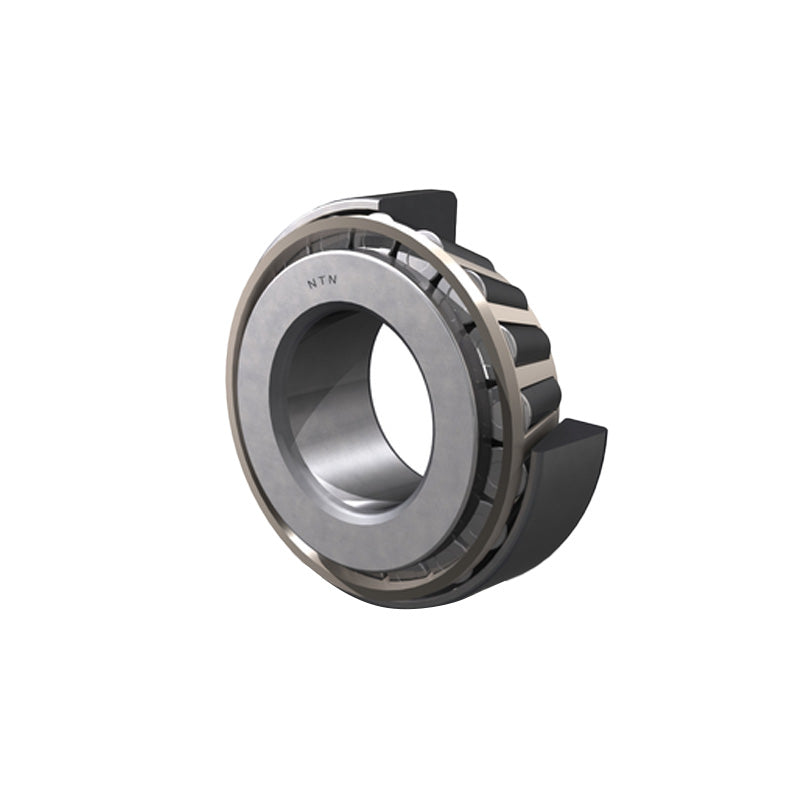

• NTN 4T-25590/25521 Tapered Roller Bearing Cup and Cone Set 1.796x3.27x0.9375 inch
  • NTN
1 2

SKU: 4T-25590/25521-NTN

NTN 4T-25590/25521 Tapered Roller Bearing Cup and Cone Set 1.796x3.27x0.9375 inch

NTN 4T-25590/25521 Tapered Roller Bearing Cup and Cone Set 1.796x3.27x0.9375 inch
$50.18 ex VAT
$50.18 ex VAT
Sale Sold out

In stock

Price Break
3+ $33.62
5+ $31.73
10+ $31.35
25+ $30.97
49+ $30.59
74+ $30.22
99+ $28.33
199+ $27.95
249+ $27.57
499+ $27.19
999+ $26.44

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
45.62mm = 1.796 inch
Outside Diameter:
83.06mm = 3.27 inch
Width:
23.81mm = 0.937 (15/16) inch
Style:
Taper Roller Bearing
Technical
--- Bearing dimensions
d 1.796 inch (45.62mm)
D (inch) 3.27 inch (83.058mm)
T 0.9375 inch (23.813mm)
B 1.00 inch (25.4mm)
C 0.75 inch (19.05mm)
--- Speeds and loads
C<sub>r</sub> 76kN
C<sub>or</sub> 98kN
r<sub>as</sub> max 3.5mm
r<sub>1as</sub> max 3.3mm
Weight 0.546kg
