SKU: 4T-30212-NTN

NTN 4T-30212 Tapered Roller Bearing Cup and Cone Set 60x110x23.75mm

NTN 4T-30212 Tapered Roller Bearing Cup and Cone Set 60x110x23.75mm
Regular price $47.04 ex VAT
Regular price Sale price $47.04 ex VAT
Sale Sold out

In stock

Price Break
3+ $31.51
5+ $29.74
10+ $29.38
25+ $29.03
49+ $28.67
74+ $28.32
99+ $26.55
199+ $26.20
249+ $25.84
499+ $25.49
999+ $24.78
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

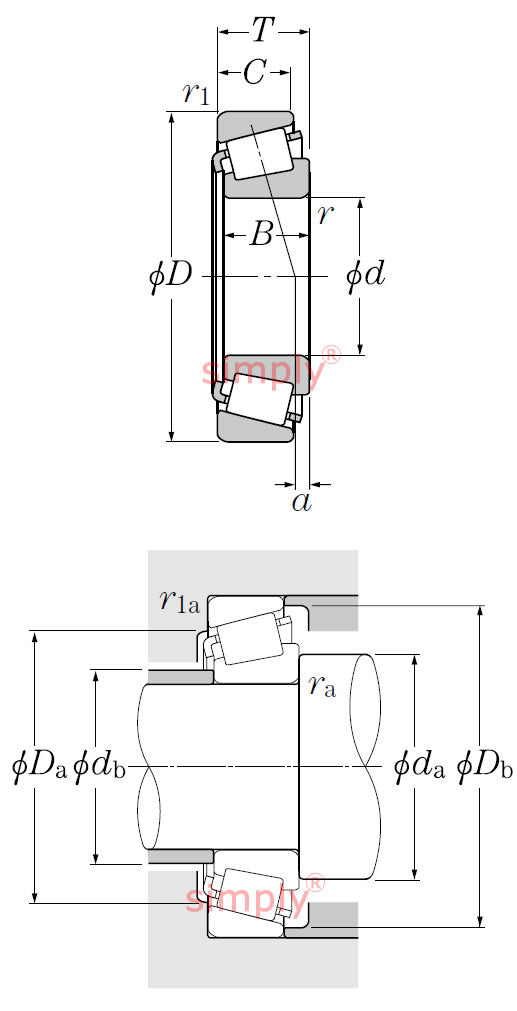

--- Bearing dimensions
d 60mm
D 110mm
T 23.75mm
B 22mm
C 19mm
r<sub>s</sub> min 2mm
r<sub>ls</sub> min 1.5mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 116kN
Static load C<sub>or</sub> 125kN
Allowable Speed in grease 3400rpm
Allowable Speed in oil 4500rpm
--- Abutment dimensions
ISO Dimension series 3EB
d<sub>a</sub> min 70mm
d<sub>b</sub> max 69.5mm
D<sub>a</sub> max 101.5mm
D<sub>a</sub> min 94mm
D<sub>b</sub> min 103.5mm
S<sub>a</sub> min 4mm
S<sub>b</sub> min 4.5mm
r<sub>as</sub> max 2mm
r<sub>1as</sub> max 1.5mm
Load center a 22mm
Constant e 0.4mm
Y<sub>2</sub> 1.48mm
Y<sub>0</sub> 0.81mm
Weight 0.929kg
