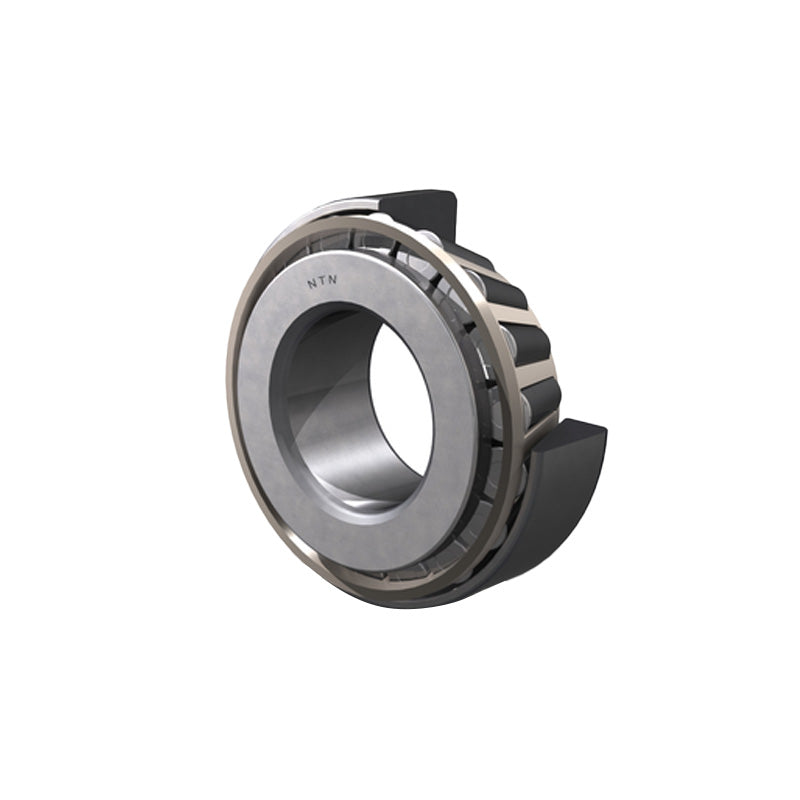

• NTN 4T-3779/3720 Tapered Roller Bearing Cup and Cone Set 1.875x3.672x1.187 inch
  • NTN
1 2

SKU: 4T-3779/3720-NTN

NTN 4T-3779/3720 Tapered Roller Bearing Cup and Cone Set 1.875x3.672x1.187 inch

NTN 4T-3779/3720 Tapered Roller Bearing Cup and Cone Set 1.875x3.672x1.187 inch
$69.68 ex VAT
$69.68 ex VAT
Sale Sold out

In stock

Price Break
3+ $46.67
5+ $44.05
10+ $43.53
25+ $43.00
49+ $42.48
74+ $41.95
99+ $39.33
199+ $38.81
249+ $38.28
499+ $37.76
999+ $36.71

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
47.63mm = 1.875 (1-7/8) inch
Outside Diameter:
93.26mm = 3.672 (3-43/64) inch
Width:
30.16mm = 1.187 (1-3/16) inch
Style:
Taper Roller Bearing
Technical
--- Bearing dimensions
d 1.875 inch (47.625mm)
D (inch) 3.672 inch (93.264mm)
T 1.187 inch (30.162mm)
B 1.19 inch (30.302mm)
C 0.94 inch (23.812mm)
--- Speeds and loads
C<sub>r</sub> 102kN
C<sub>or</sub> 134kN
r<sub>as</sub> max 3.5mm
r<sub>1as</sub> max 3.3mm
Weight 0.945kg
