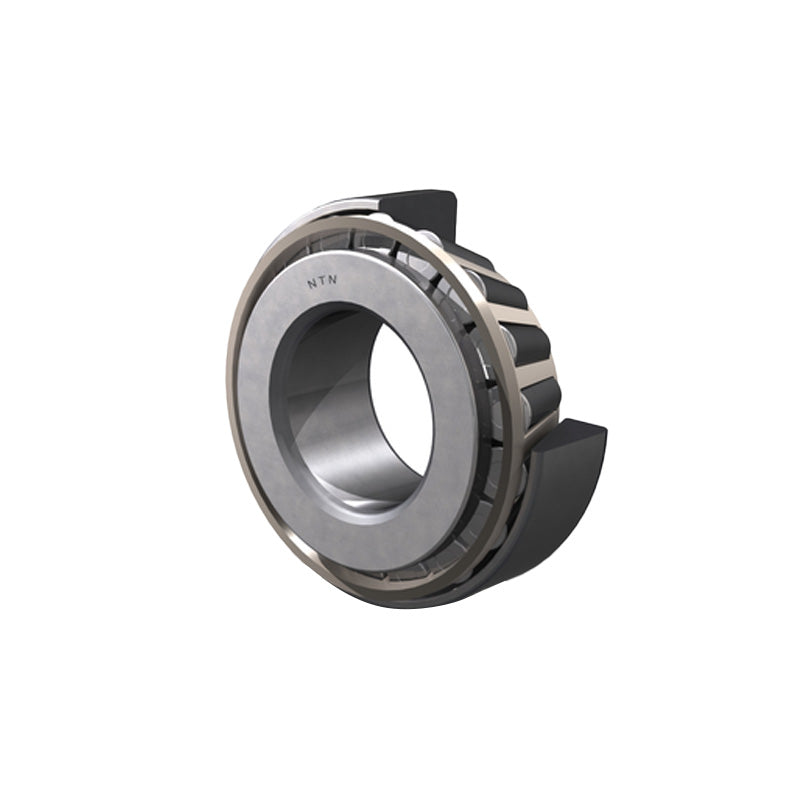

• NTN 4T-3980/3920 Tapered Roller Bearing Cup and Cone Set 2.38x4.437x1.187 inch
  • NTN
1 2

SKU: 4T-3980/3920-NTN

NTN 4T-3980/3920 Tapered Roller Bearing Cup and Cone Set 2.38x4.437x1.187 inch

NTN 4T-3980/3920 Tapered Roller Bearing Cup and Cone Set 2.38x4.437x1.187 inch
$83.39 ex VAT
$83.39 ex VAT
Sale Sold out

In stock

Price Break
3+ $55.86
5+ $52.72
10+ $52.09
25+ $51.46
49+ $50.84
74+ $50.21
99+ $47.07
199+ $46.44
249+ $45.81
499+ $45.19
999+ $43.93

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
60.33mm = 2.375 (2-3/8) inch
Outside Diameter:
112.71mm = 4.437 (4-7/16) inch
Width:
30.16mm = 1.187 (1-3/16) inch
Style:
Taper Roller Bearing
Technical
--- Bearing dimensions
d 2.38 inch (60.325mm)
D (inch) 4.437 inch (112.712mm)
T 1.187 inch (30.162mm)
B 1.18 inch (30.048mm)
C 0.94 inch (23.812mm)
--- Speeds and loads
C<sub>r</sub> 119kN
C<sub>or</sub> 174kN
r<sub>as</sub> max 3.5mm
r<sub>1as</sub> max 3.3mm
Weight 1.35kg
