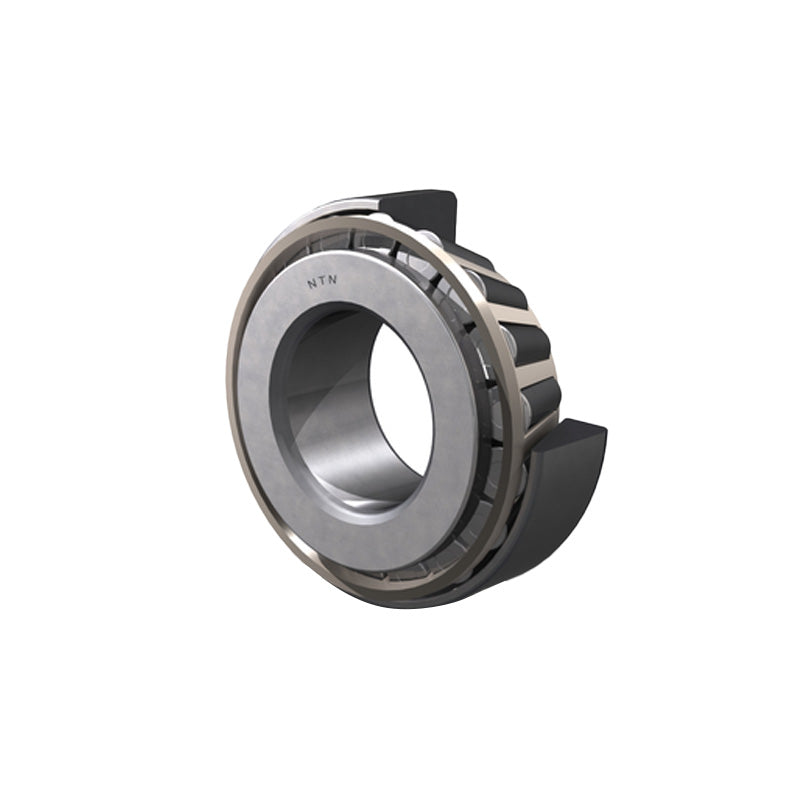

• NTN 4T-482/472X Tapered Roller Bearing Cup and Cone Set 2.75x4.875x1.187 inch
  • NTN
1 2

SKU: 4T-482/472X-NTN

NTN 4T-482/472X Tapered Roller Bearing Cup and Cone Set 2.75x4.875x1.187 inch

NTN 4T-482/472X Tapered Roller Bearing Cup and Cone Set 2.75x4.875x1.187 inch
$144.85 ex VAT
$144.85 ex VAT
Sale Sold out

In stock

Price Break
3+ $97.03
5+ $91.58
10+ $90.49
25+ $89.40
49+ $88.31
74+ $87.22
99+ $81.77
199+ $80.67
249+ $79.58
499+ $78.49
999+ $76.31

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
69.85mm = 2.75 (2-3/4) inch
Outside Diameter:
123.83mm = 4.875 (4-7/8) inch
Width:
30.16mm = 1.187 (1-3/16) inch
Style:
Taper Roller Bearing
Technical
--- Bearing dimensions
d 2.75 inch (69.85mm)
D (inch) 4.875 inch (123.825mm)
T 1.187 inch (30.162mm)
B 1.14 inch (29.007mm)
C 0.97 inch (24.605mm)
--- Speeds and loads
C<sub>r</sub> 128kN
C<sub>or</sub> 111kN
r<sub>as</sub> max 3.5mm
r<sub>1as</sub> max 3.3mm
Weight 1.522kg
