• 5/16x1-1/4 UNF Bright Zinc Plated Set Screw
1 1

SKU: 5/16x1-1/4-UNF-SET38

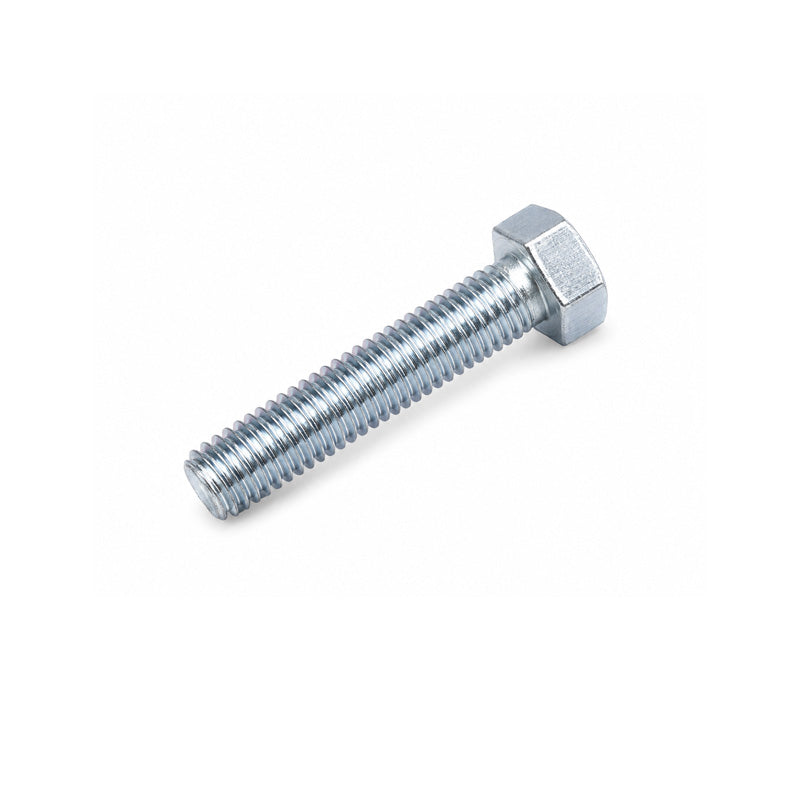

5/16x1-1/4 UNF Bright Zinc Plated Set Screw

5/16x1-1/4 UNF Bright Zinc Plated Set Screw
$1.13 ex VAT
$1.13 ex VAT
Sale Sold out

In stock

Price Break
10+ $0.47
20+ $0.36
50+ $0.26
100+ $0.21
500+ $0.17
1000+ $0.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Set Screw: A set screw is a type of screw generally used to secure an object within or against another object. The most common examples are securing a pulley or gear to a shaft.
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
5/16x1-1/4 UNF
Width of Head:
9.65mm = 0.38 inch approx.
Depth of Head:
4.57mm = 0.18 inch approx.
Pitch:
24 (TPI)
Technical
Width of head (a) 9.65mm = 0.38 inch approx.
Depth of head (d) 4.57mm = 0.18 inch approx.
Head to screw (D) 31.75mm = 1.25 (1-1/4) inch
Overall length (d+D) Thread diameter (f)
7.93mm = 0.312 (5/16) inch TPI (Threads Per Inch)
24 TPI N/A
