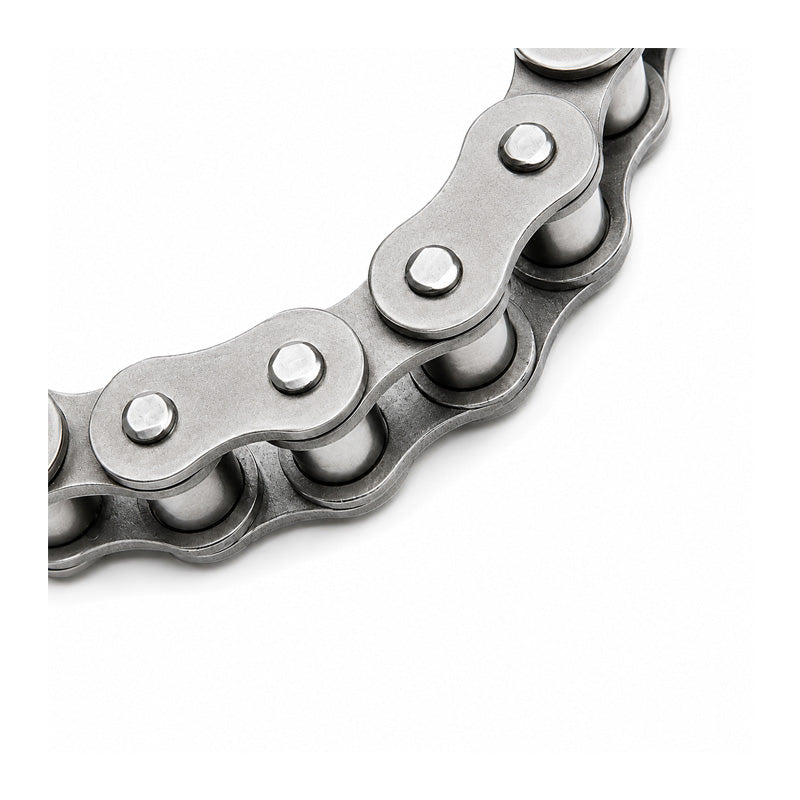

• Branded ANSI/ASA50-1 Simplex Roller Chain 5/8 inch Pitch 5 Metres
1 1

SKU: 50-1-5MTR-MB

Branded ANSI/ASA50-1 Simplex Roller Chain 5/8 inch Pitch 5 Metres

Branded ANSI/ASA50-1 Simplex Roller Chain 5/8 inch Pitch 5 Metres
$49.71 ex VAT
$49.71 ex VAT
Sale Sold out

In stock

Price Break
2+ $33.30
5+ $31.43
10+ $31.05
29+ $30.68
49+ $30.30
75+ $29.93
100+ $28.06
200+ $27.69
250+ $27.31
500+ $26.94
1000+ $26.19

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Pitch:
15.88mm = 0.625 (5/8) inch
Technical
Pitch (P) 15.88mm = 0.625 (5/8) inch
Roller Diameter (D1 max) 10.16mm
Width between inner plates (B1 min) 9.4mm
Pin dia meter (D2 max) 5.08mm
Pin length (L max) 20.7mm
Pin length (Lc max) 22.2mm
Inner plate depth (H2 max) 15.09
mmPlate thickness (T max) 2.03
mmUltimate tensile strength (Q min) kN/LB 22.20/5045
Average tensile strength (Q0) kN 29.4
Weight per meter (q) kg/m 1.02
