SKU: 50-1-NO30-MB
Branded 50-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 5/8 inch Pitch
- Regular price
- $7.15 ex VAT
- Sale price
- $7.15
- Regular price
-
In stock
Quantity Price Breaks
2
$6.36
5
$6.01
10
$5.93
29
$5.86
49
$5.79
75
$5.72
100
$5.36
200
$5.29
250
$5.22
500
$5.15
1000
$5.01
SKU:
50-1-NO30-MB
Branded 50-1-NO30 ANSI / AS Simplex Chain Double Cranked Link 5/8 inch Pitch
- Regular price
- $7.15 ex VAT
- Sale price
- $7.15
- Regular price
-
Description

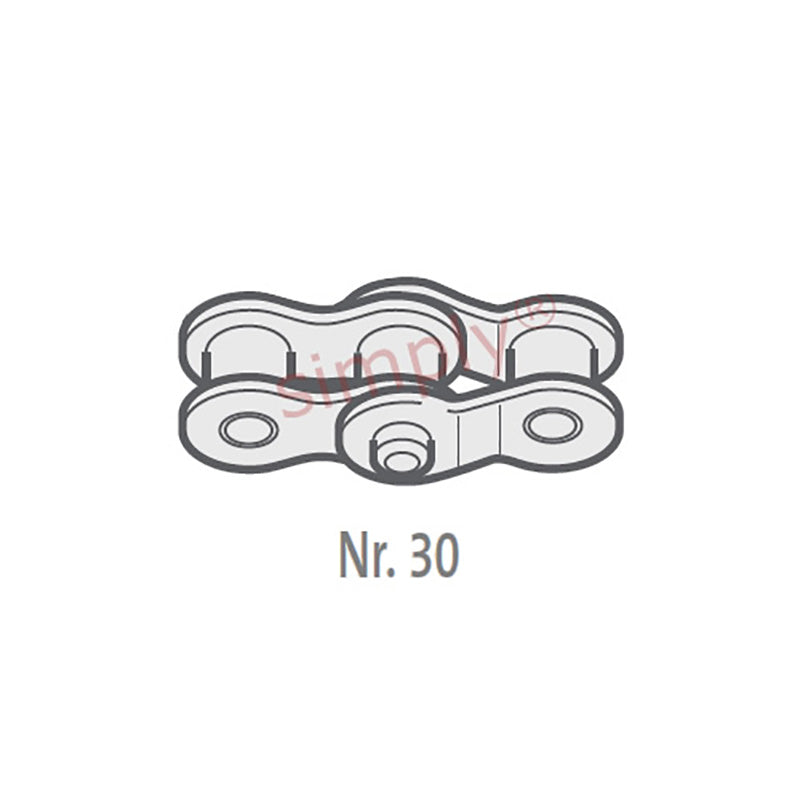

Branded DOL / No. 30 ANSI Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.4mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 15.09mm |
| Plate Width Inner max (E) | = | 2mm |
| Plate Width Outer max (F) | = | 2mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H1) | = | 20.9mm |
| Connecting Link Extension max (J) | = | 1.3mm |
| ISO606 Tensile Strength min | = | 21800 N |
| Weight | = | 0.015kg/m |
