Renold Synergy 50-1-NO4 ANSI / AS Simplex Chain Inner Link 5/8 inch Pitch

Renold Synergy 50-1-NO4 ANSI / AS Simplex Chain Inner Link 5/8 inch Pitch
$17.58 ex VAT
$17.58 ex VAT
Sale Sold out

In stock

Price Break
2+ $11.77
5+ $11.11
10+ $10.98
29+ $10.85
49+ $10.72
75+ $10.58
100+ $9.92
200+ $9.79
250+ $9.66
500+ $9.53
1000+ $9.26

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

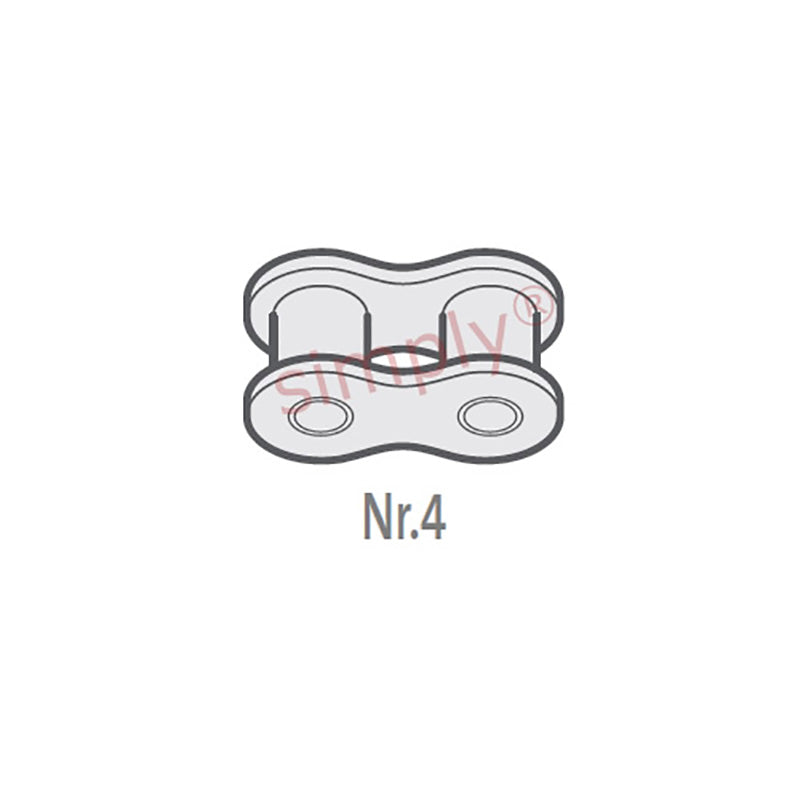

Renold No. 4 ANSI Simplex Connecting Link: These are complete assemblies for use with all sizes and types of chain. The unit consists of two inner plates pressed on to the bushes which carry the rollers. (Inner links for use with bush chains have no rollers).
Brand / Quality:
Renold - High Quality
Pitch:
15.88mm = 0.625 (5/8) inch
Technical
Pitch (A) 0.625 inch
Pitch (A) 15.875mm
Inside Width min (B) 9.4mm
Roller Diameter max (C) 10.16mm
Plate Height max (D) 14.6mm
Plate Width Inner max (E) 2.04mm
Plate Width Outer max (F) 2.04mm
Pin Diameter max (G) 5.08mm
Pin Length max (H1) 20.4mm
Connecting Link Extension max (J) 2.7mm
ISO606 Tensile Strength min 21800 N
Weight 0.015kg/m
