SKU: 50-2-BB-NO11-RENOLD
Renold Blue Box 50-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 5/8 inch Pitch
- Regular price
- $14.35 ex VAT
- Sale price
- $14.35
- Regular price
-
Not in stock
Quantity Price Breaks
2
$12.77
5
$12.05
10
$11.91
29
$11.77
49
$11.62
75
$11.48
100
$10.76
200
$10.62
250
$10.48
500
$10.33
1000
$10.05
SKU:
50-2-BB-NO11-RENOLD
Renold Blue Box 50-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 5/8 inch Pitch
- Regular price
- $14.35 ex VAT
- Sale price
- $14.35
- Regular price
-
Description

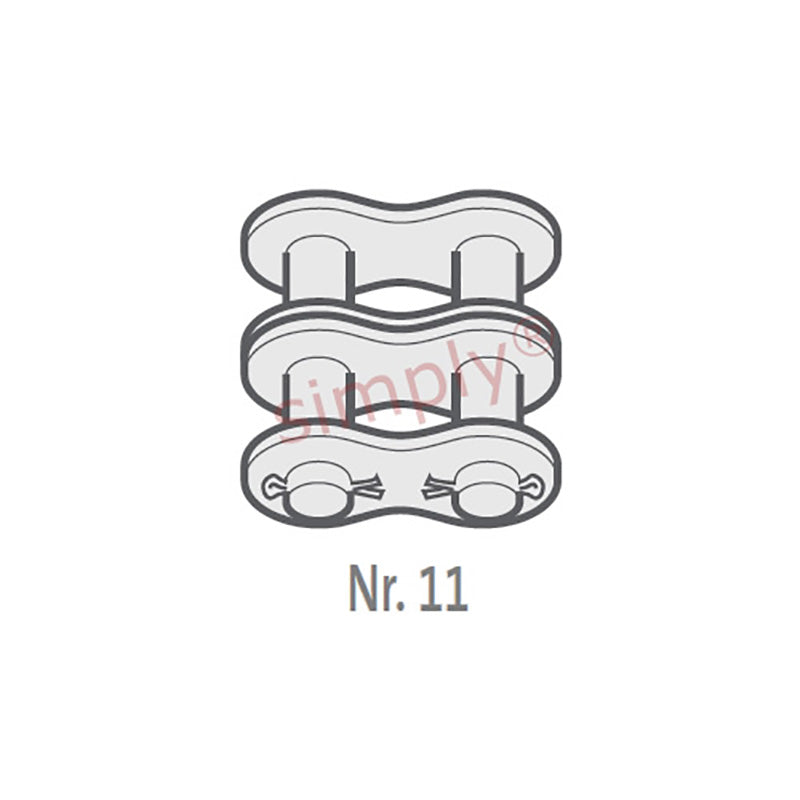

| Renold No. 11 ANSI Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 0.625 inch |
| Pitch (A) | = | 15.875mm |
| Inside Width min (B) | = | 9.4mm |
| Roller Diameter max (C) | = | 10.16mm |
| Plate Height max (D) | = | 14.6mm |
| Plate Width Inner max (E) | = | 2.04mm |
| Plate Width Outer max (F) | = | 2.04mm |
| Pin Diameter max (G) | = | 5.08mm |
| Pin Length max (H2) | = | 38.4mm |
| Connecting Link Extension max (J) | = | 2.7mm |
| Transverse Pitch nom (K) | = | 18.11mm |
| ISO606 Tensile Strength min | = | 43600 N |
| Weight | = | 0.01kg/m |
