• Branded ANSI/ASA50-3 Triplex Roller Chain 5/8 inch Pitch 5 Metres
1 1

SKU: 50-3-5MTR-MB

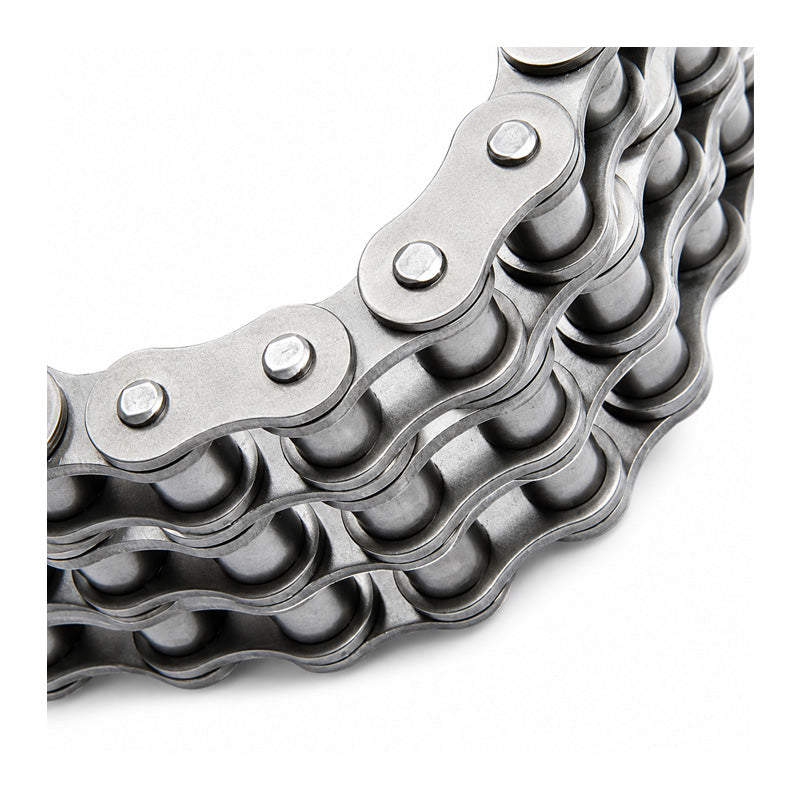

Branded ANSI/ASA50-3 Triplex Roller Chain 5/8 inch Pitch 5 Metres

Branded ANSI/ASA50-3 Triplex Roller Chain 5/8 inch Pitch 5 Metres
$124.37 ex VAT
$124.37 ex VAT
Sale Sold out

In stock

Price Break
2+ $83.30
5+ $78.62
10+ $77.69
29+ $76.75
49+ $75.81
75+ $74.88
100+ $70.20
200+ $69.26
250+ $68.33
500+ $67.39
1000+ $65.52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Pitch:
15.88mm = 0.625 (5/8) inch

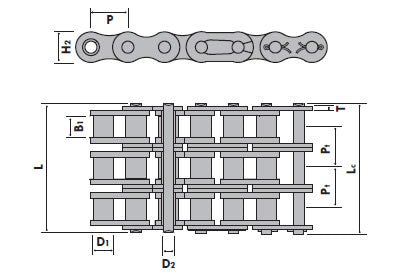

Technical
Pitch (P) 15.88mm = 0.625 (5/8) inch
Roller Diameter (D1 max) 10.16mm
Width between inner plates (B1 min) 9.4mm
Pin dia meter (D2 max) 5.08mm
Pin length (L max) 38.9mm
Pin length (Lc max) 40.4mm
Inner plate depth (H2 max) 15.09mm
Plate thickness (T max) 2.03mm
Ultimate tensile strength (Q min) kN/LB 44.40/10091
Average tensile strength (Q0) kN 58.1
Transverse pitch (Pt) mm 18.11
Weight per meter (q) kg/m 2
