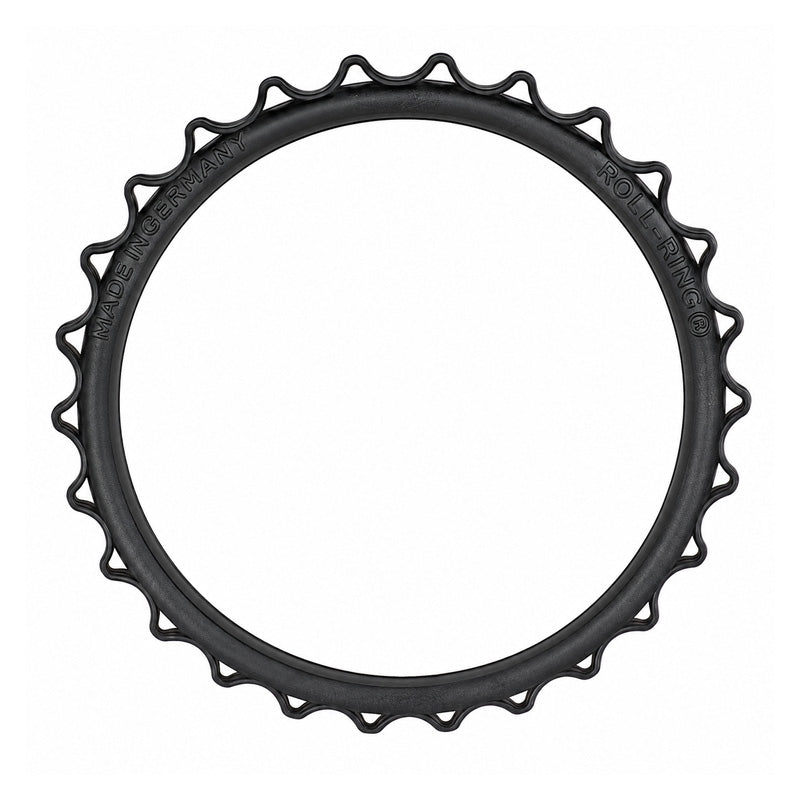

Renold 26 Tooth 50-A Roll Ring for 5/8 inch Pitch - Ambient Temperature -22 to+122°F
Renold 26 Tooth 50-A Roll Ring for 5/8 inch Pitch - Ambient Temperature -22 to+122°F
Out of stock
Description
Description
|
Renold Roll Ring: The ROLL-RING® is designed to deform to an elliptical shape, when the drive is in use. This is due to ROLL-RING® being compressed completely absorbs any slack in the system. ROLL-RING® chain tensioners are maintenance free and can be fitted to a wide variety of chain drives with no installation downtime. The ROLL-RING® has been modified to requirements of cold temperatures for flexibility and intensified damping characteristics. |
- Brand / Quality:
- Renold - High Quality
- Teeth:
- 26
- Pitch:
- 5/8 inches
Technical
Technical
| do | 5.055 inch |
|---|---|
| di | 4.134 inch |
| s | 1.102 inch |
| A | 6.024 inch |
| D = do-s | 3.953 inch |
| Chain Dimension - p x b1- inches | 5/8x3/8 |
| Max Static Expansive Force - lbs** | 3.53 |
| Maximum Chain Speed ft/min | 906 |
| Ambient Temperature (°F) | -22 to+122 |
| Weight (lbs) | 0.055 |
