SKU: 500SPB5-MB

500X5SPB 500mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)

500X5SPB 500mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 5 Grooves (Bush not Incl.)
$312.32 ex VAT
$312.32 ex VAT
Sale Sold out

In stock

Price Break
3+ $209.21
5+ $197.45
9+ $195.10
19+ $192.75
49+ $190.40
74+ $188.05
99+ $176.30
199+ $173.95
249+ $171.60
499+ $169.25
999+ $164.54

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
5
Outside Diameter:
507.6mm
Pitch Diameter:
500mm
Max Bore:
100mm

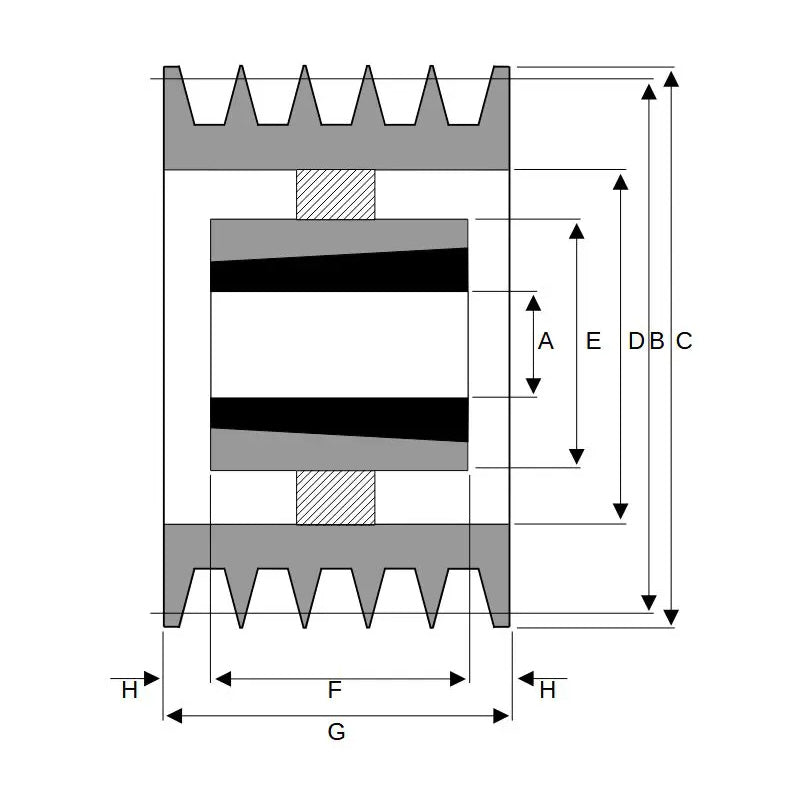

Technical
Number of Grooves 5
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3525+tapered+locking+bush">3525 Click Here</a>
Pitch Diameter B 500mm
Overall Outer Diameter C 507.6mm
Max Bore A 100mm
Outer Hub Diameter E 175mm
Overall Sheave Depth F 101mm
Bush Seat Length G 65mm
Inner Recess Diameter D 457mm
Inner Recess Length H 16mm
