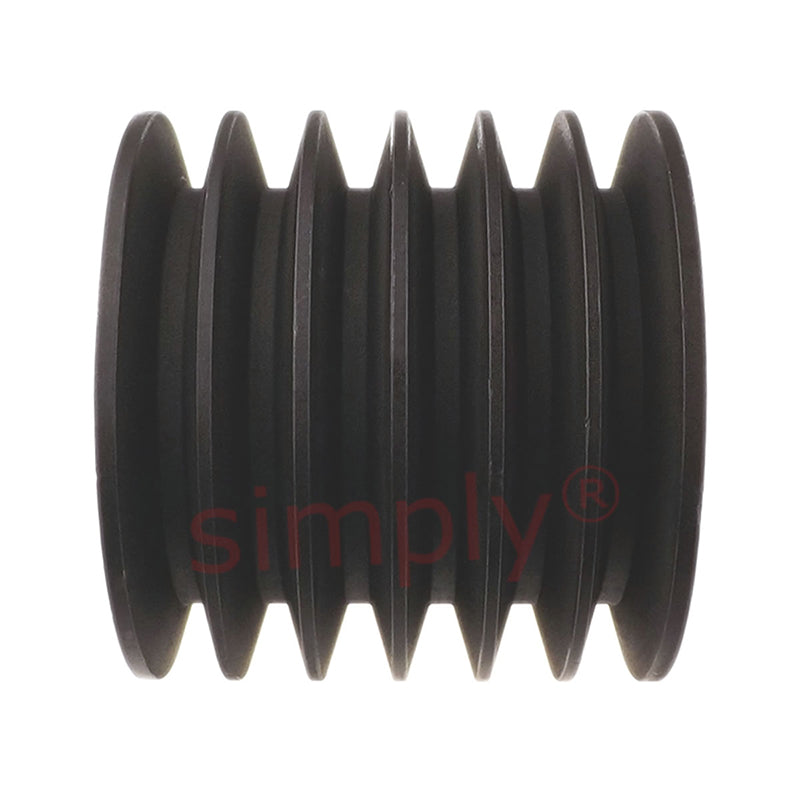

• 500X6SPC 500mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
1 1

SKU: 500SPC6-MB

500X6SPC 500mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)

500X6SPC 500mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
$541.20 ex VAT
$541.20 ex VAT
Sale Sold out

In stock

Price Break
3+ $362.52
5+ $342.15
9+ $338.08
19+ $334.00
49+ $329.93
74+ $325.86
99+ $305.49
199+ $301.42
249+ $297.35
499+ $293.27
999+ $285.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
6
Outside Diameter:
510.2mm
Pitch Diameter:
500mm
Max Bore:
110mm
Technical
Number of Grooves 6
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=4535+tapered+locking+bush">4535 Click Here</a>
Pitch Diameter B 500mm
Overall Outer Diameter C 510.2mm
Max Bore A 110mm
Outer Hub Diameter E 240mm
Overall Sheave Depth F 162mm
Bush Seat Length G 89mm
Inner Recess Diameter D 443mm
Inner Recess Length H 36mm
