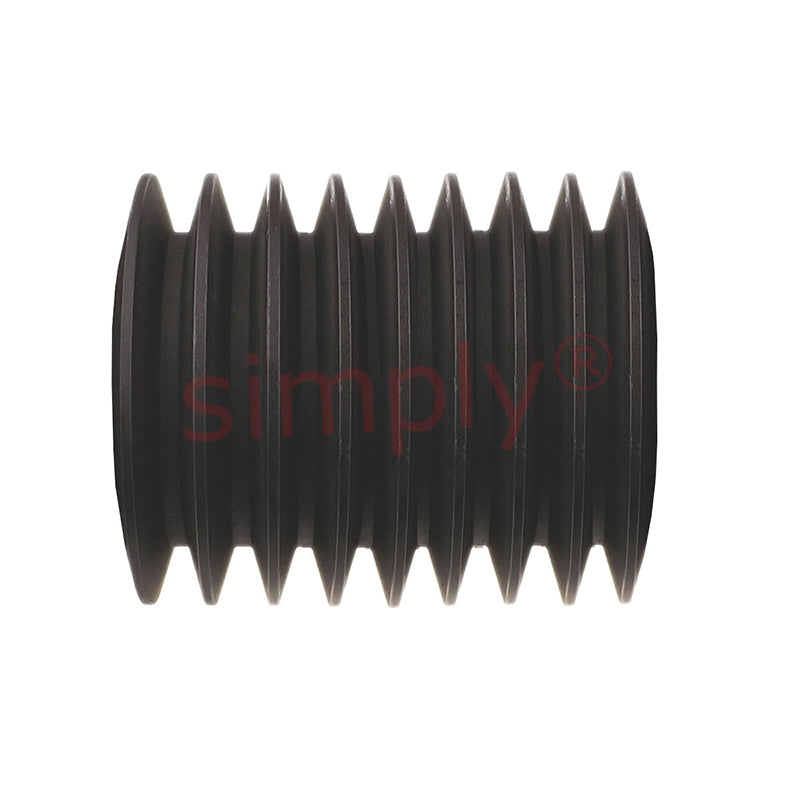

• 500X8SPC 500mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 8 Grooves (Bush not Incl.)
1 1

SKU: 500SPC8-MB

500X8SPC 500mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 8 Grooves (Bush not Incl.)

500X8SPC 500mm Pitch Diameter SPC Section Tapered Locking Bush Type Pulley with 8 Grooves (Bush not Incl.)
$688.38 ex VAT
$688.38 ex VAT
Sale Sold out

In stock

Price Break
3+ $461.10
5+ $435.19
9+ $430.01
19+ $424.83
49+ $419.65
74+ $414.47
99+ $388.56
199+ $383.38
249+ $378.20
499+ $373.02
999+ $362.66

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
8
Outside Diameter:
510.2mm
Pitch Diameter:
500mm
Max Bore:
125mm
Technical
Number of Grooves 8
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=4535+tapered+locking+bush">4535 Click Here</a>
Pitch Diameter B 500mm
Overall Outer Diameter C 510.2mm
Max Bore A 125mm
Outer Hub Diameter E 265mm
Overall Sheave Depth F 213mm
Bush Seat Length G 89mm
Inner Recess Diameter D 443mm
Inner Recess Length H 62mm
