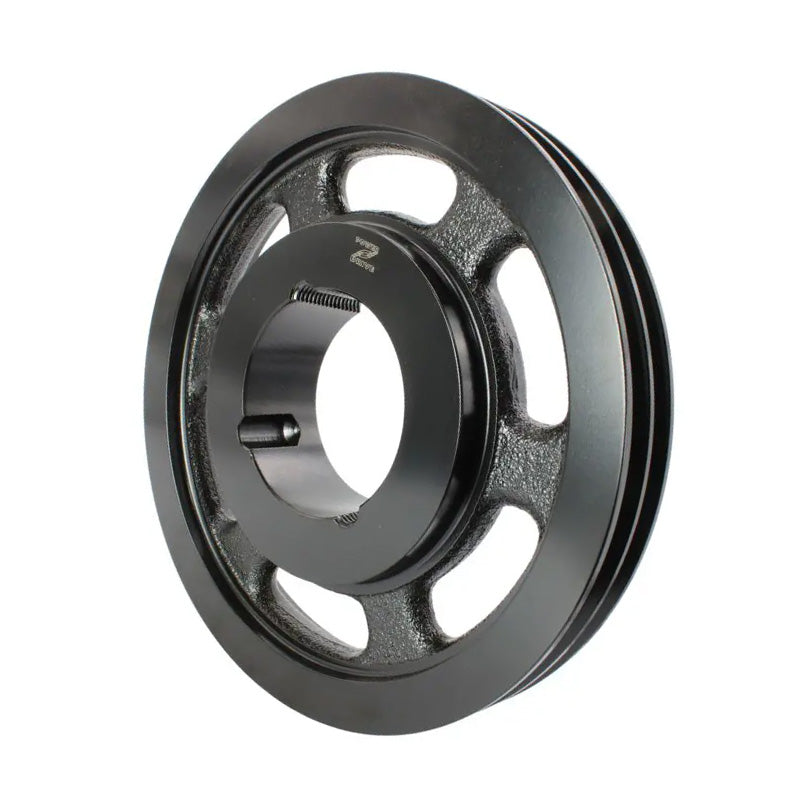

• 500X2SPZ 500mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 2 Grooves (Bush not Incl.)
1 1

SKU: 500SPZ2-MB

500X2SPZ 500mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 2 Grooves (Bush not Incl.)

500X2SPZ 500mm Pitch Diameter SPZ Section Tapered Locking Bush Type Pulley with 2 Grooves (Bush not Incl.)
$96.82 ex VAT
$96.82 ex VAT
Sale Sold out

In stock

Price Break
3+ $64.86
5+ $61.21
9+ $60.48
19+ $59.75
49+ $59.03
74+ $58.30
99+ $54.65
199+ $53.92
249+ $53.20
499+ $52.47
999+ $51.01

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
2
Outside Diameter:
504.6mm
Pitch Diameter:
500mm
Max Bore:
60mm
Technical
Number of Grooves 2
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=2517+tapered+locking+bush">2517 Click Here</a>
Pitch Diameter B 500mm
Overall Outer Diameter C 504.6mm
Max Bore A 60mm
Outer Hub Diameter E 124mm
Overall Sheave Depth F 28mm
Bush Seat Length G 45mm
Inner Recess Diameter D 471mm
Inner Recess Length H 8.5mm
