• 51105 Thrust Ball Bearing 25x42x11mm
1 1

SKU: 51105.MB

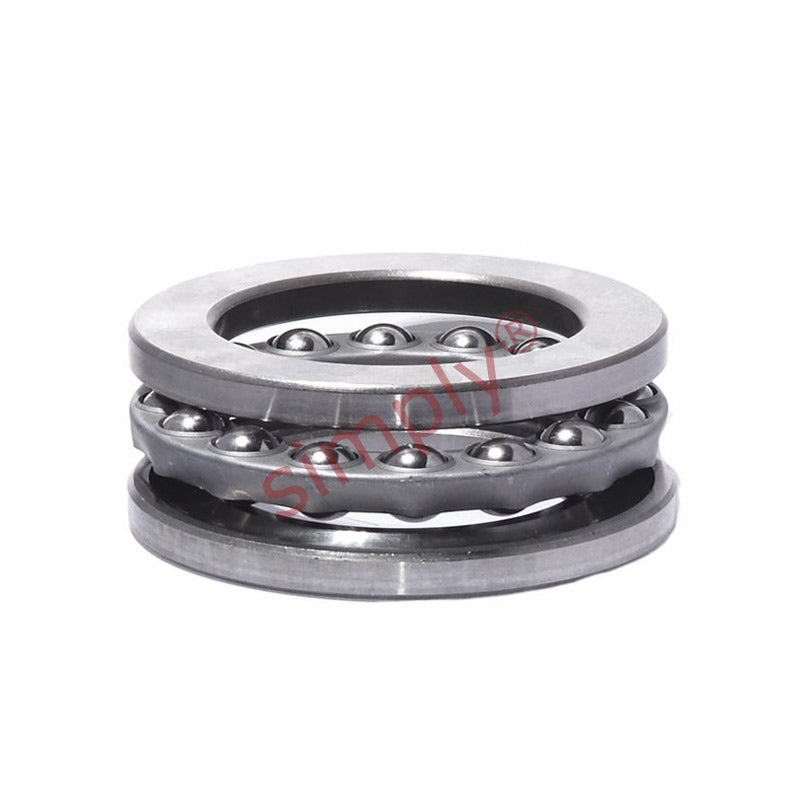

51105 Thrust Ball Bearing 25x42x11mm

51105 Thrust Ball Bearing 25x42x11mm
$17.83 ex VAT
$17.83 ex VAT
Sale Sold out

In stock

Price Break
10+ $11.94
19+ $11.27
29+ $11.14
39+ $11.01
49+ $10.87
74+ $10.74
99+ $10.07
199+ $9.93
249+ $9.80
499+ $9.66
999+ $9.39

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
25mm
Outside Diameter:
42mm
Width:
11mm
Technical
d 25mm
D 42mm
H 11mm
Dynamic load C 18.2 kN
Static load Co 39 kN
Fatigue load limit Pu 1.43 kN
Minimum load factor A 0.0079
Reference speed 6300 rpm
Limiting speed 9000 rpm
Weight 0.056 kg
d1 42mm
D1 26mm
r1r2 min 0.6mm
da min 35mm
Da max 32mm
ra max 0.6mm
