SKU: 51115-CDX

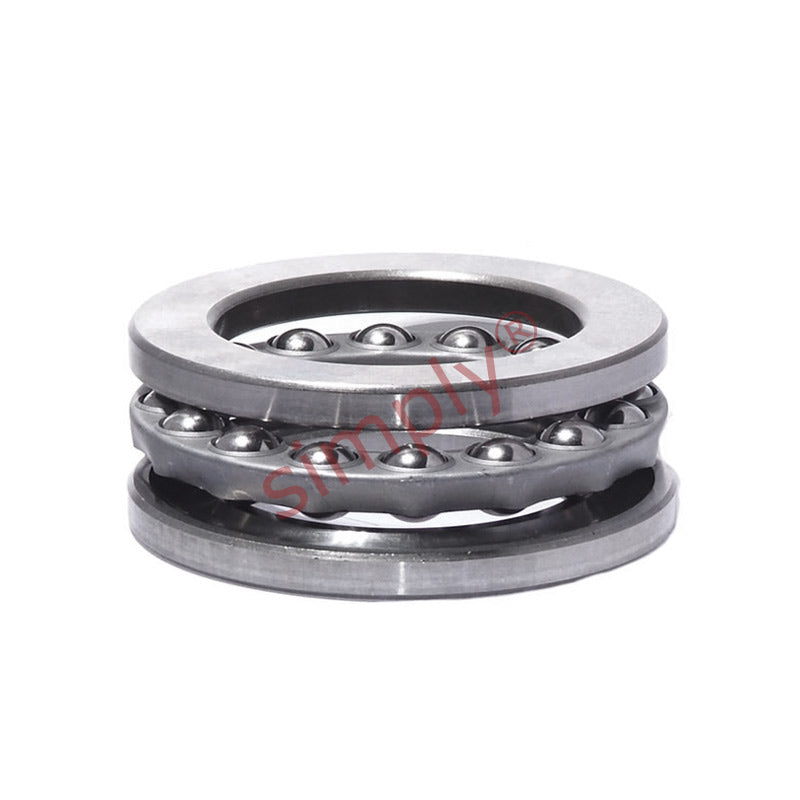

Codex 51115 Single Thrust Ball Bearing 75x100x19mm
- Regular price
- $45.31 ex VAT
- Sale price
- $45.31
- Regular price
-
In stock
Quantity Price Breaks
10
$40.33
19
$38.06
29
$37.61
39
$37.15
49
$36.70
74
$36.25
99
$33.98
199
$33.53
249
$33.08
499
$32.62
999
$31.72
SKU:
51115-CDX
Codex 51115 Single Thrust Ball Bearing 75x100x19mm
- Regular price
- $45.31 ex VAT
- Sale price
- $45.31
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 75 |
| D | = | 100 |
| H | = | 19 |
| Dynamic Load | = | 44.2 kN |
| Static Load | = | 146 kN |
| Pu | = | 5.5 |
| A | = | 0.11 |
| Ref Speed | = | 3200 rpm |
| Limiting Speed | = | 4300 rpm |
| kg | = | 0.4 |
| d1 | = | 100 |
| D1 | = | 77 |
| r1r2 min | = | 1 |
| da min | = | 90 |
| Da max | = | 85 |
| ra max | = | 1 |
