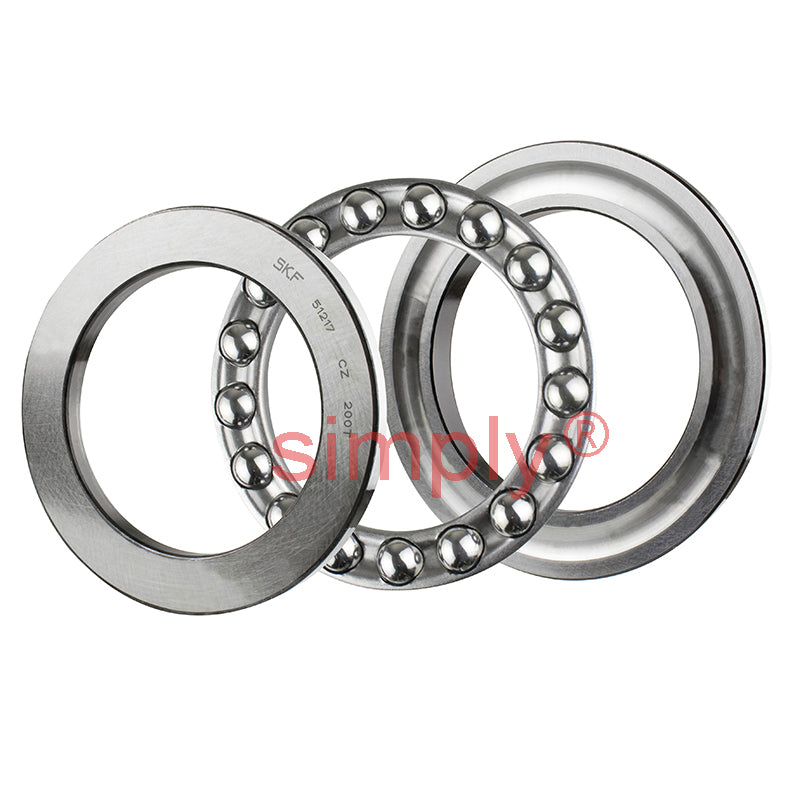

• SKF 51217 Single Thrust Ball Bearing 85x125x31mm
1 1

SKU: 51217-SKF

SKF 51217 Single Thrust Ball Bearing 85x125x31mm

SKF 51217 Single Thrust Ball Bearing 85x125x31mm
$139.46 ex VAT
$139.46 ex VAT
Sale Sold out

In stock

Price Break
10+ $93.41
19+ $88.16
29+ $87.12
39+ $86.07
49+ $85.02
74+ $83.97
99+ $78.72
199+ $77.67
249+ $76.62
499+ $75.57
999+ $73.47

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Brand / Quality:
SKF - High Quality
Inside Diameter:
85mm
Outside Diameter:
125mm
Width:
31mm
Technical
d 85mm
D 125mm
H 31mm
Dynamic load C 97.5 kN
Static load Co 275 kN
Fatigue load limit Pu 9.8 kN
Minimum load factor A 0.39
Reference speed 2200 rpm
Limiting speed 3000 rpm
Weight 1.2 kg
d1 125mm
D1 88mm
r1r2 min 1mm
da min 109mm
Da max 101mm
ra max 1mm
