SKU: 51308-CDX

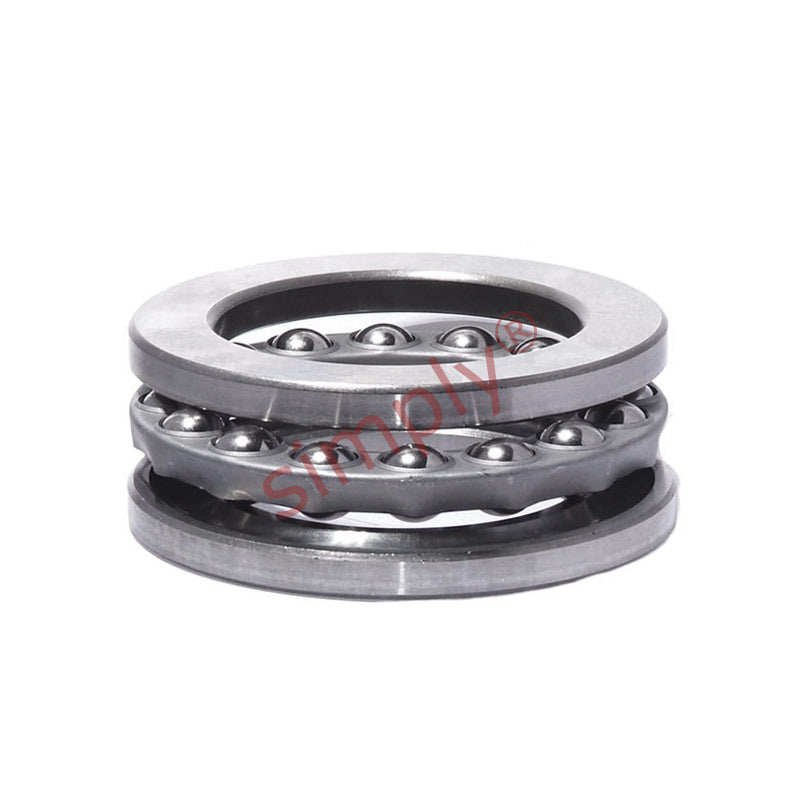

Codex 51308 Single Thrust Ball Bearing 40x78x26mm
- Regular price
- $48.50 ex VAT
- Sale price
- $48.50
- Regular price
-
In stock
Quantity Price Breaks
10
$43.17
19
$40.74
29
$40.26
39
$39.77
49
$39.29
74
$38.80
99
$36.38
199
$35.89
249
$35.41
499
$34.92
999
$33.95
SKU:
51308-CDX
Codex 51308 Single Thrust Ball Bearing 40x78x26mm
- Regular price
- $48.50 ex VAT
- Sale price
- $48.50
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 40 |
| D | = | 78 |
| H | = | 26 |
| Dynamic Load | = | 61.8 kN |
| Static Load | = | 122 kN |
| Pu | = | 4.5 |
| A | = | 0.077 |
| Ref Speed | = | 3000 rpm |
| Limiting Speed | = | 4300 rpm |
| kg | = | 0.53 |
| d1 | = | 78 |
| D1 | = | 42 |
| r1r2 min | = | 1 |
| da min | = | 63 |
| Da max | = | 55 |
| ra max | = | 1 |
