SKU: 51315-CDX

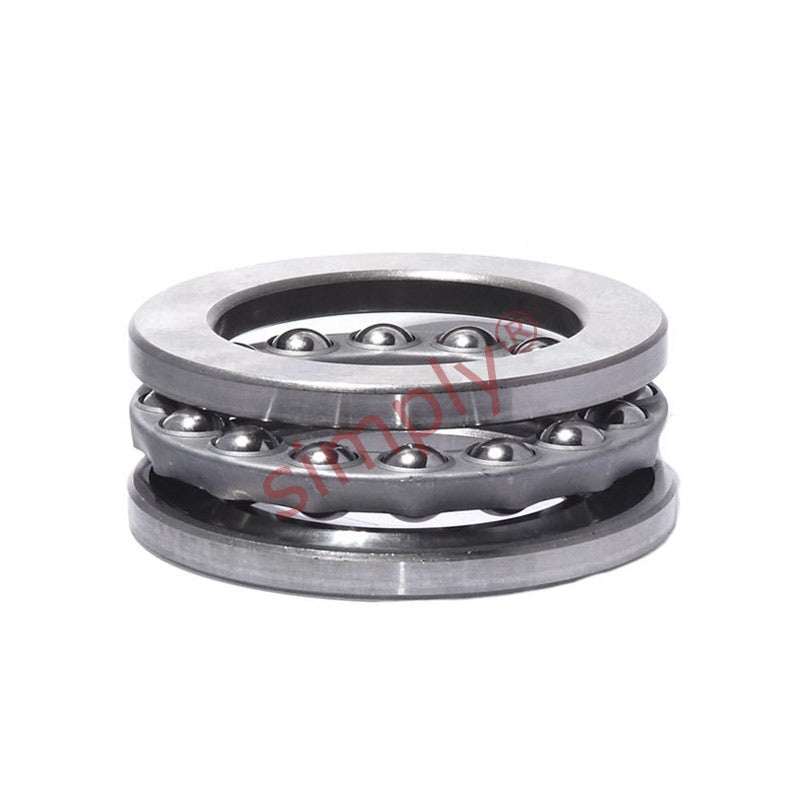

Codex 51315 Single Thrust Ball Bearing 75x135x44mm
- Regular price
- $217.03 ex VAT
- Sale price
- $217.03
- Regular price
-
In stock
Quantity Price Breaks
10
$193.16
19
$182.31
29
$180.13
39
$177.96
49
$175.79
74
$173.62
99
$162.77
199
$160.60
249
$158.43
499
$156.26
999
$151.92
SKU:
51315-CDX
Codex 51315 Single Thrust Ball Bearing 75x135x44mm
- Regular price
- $217.03 ex VAT
- Sale price
- $217.03
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 75 |
| D | = | 135 |
| H | = | 44 |
| Dynamic Load | = | 163 kN |
| Static Load | = | 390 kN |
| Pu | = | 14 |
| A | = | 0.79 |
| Ref Speed | = | 1700 rpm |
| Limiting Speed | = | 2400 rpm |
| kg | = | 2.6 |
| d1 | = | 135 |
| D1 | = | 77 |
| r1r2 min | = | 1.5 |
| da min | = | 111 |
| Da max | = | 99 |
| ra max | = | 1.5 |
