SKU: 51316-CDX

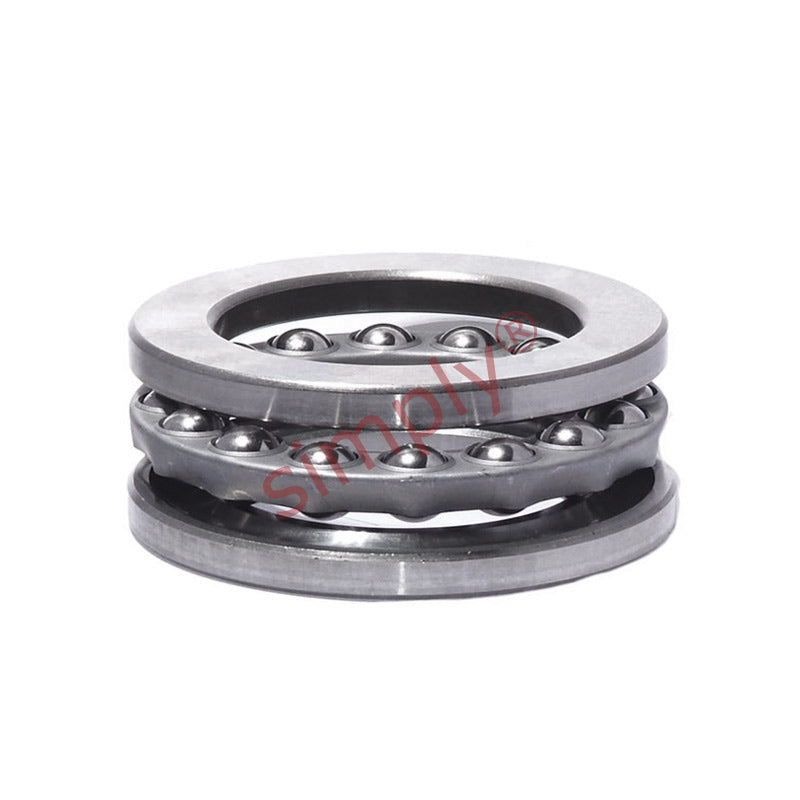

Codex 51316 Single Thrust Ball Bearing 80x140x44mm
- Regular price
- $232.60 ex VAT
- Sale price
- $232.60
- Regular price
-
In stock
Quantity Price Breaks
10
$207.01
19
$195.38
29
$193.06
39
$190.73
49
$188.41
74
$186.08
99
$174.45
199
$172.12
249
$169.80
499
$167.47
999
$162.82
SKU:
51316-CDX
Codex 51316 Single Thrust Ball Bearing 80x140x44mm
- Regular price
- $232.60 ex VAT
- Sale price
- $232.60
- Regular price
-
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Technical
| d | = | 80 |
| D | = | 140 |
| H | = | 44 |
| Dynamic Load | = | 159 kN |
| Static Load | = | 390 kN |
| Pu | = | 13.7 |
| A | = | 0.79 |
| Ref Speed | = | 1700 rpm |
| Limiting Speed | = | 2400 rpm |
| kg | = | 2.7 |
| d1 | = | 140 |
| D1 | = | 82 |
| r1r2 min | = | 1.5 |
| da min | = | 116 |
| Da max | = | 104 |
| ra max | = | 1.5 |
