SKU: 5203-2RS-KSM

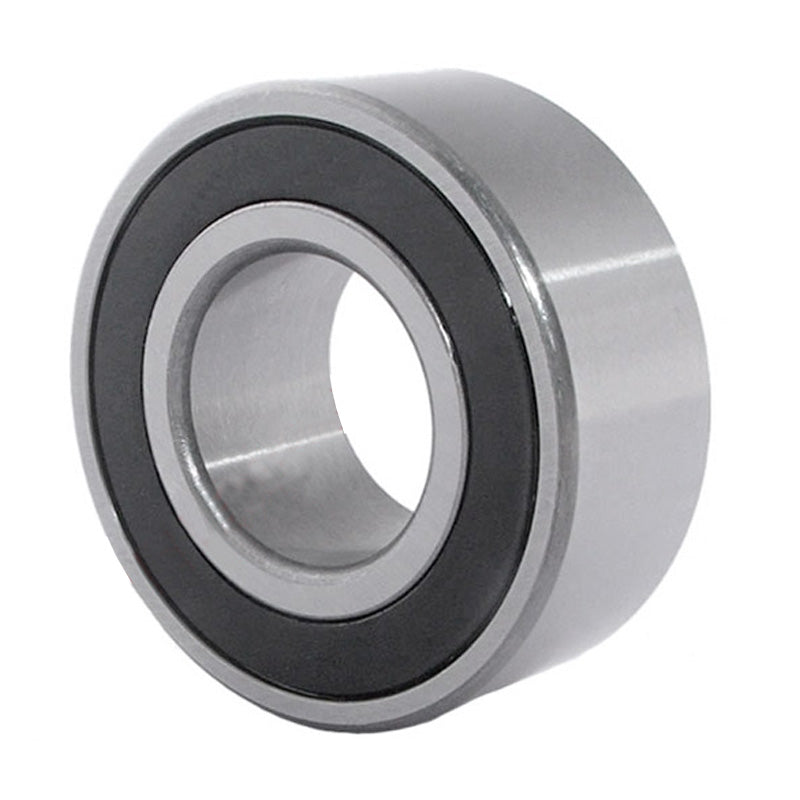

KSM 52032RS Rubber Sealed Double Row Angular Contact Ball Bearing 17x40x17.5mm

Name: KSM 52032RS Rubber Sealed Double Row Angular Contact Ball Bearing 17x40x17.5mm
Brand: KSM
SKU: 5203-2RS-KSM
Price: 29.46 USD
Availability: InStock

$29.46 ex VAT

Sale Sold out

Equivalent to: 32032RS

In stock

Price Break

4+ $19.73

9+ $18.62

19+ $18.40

29+ $18.18

49+ $17.96

99+ $17.74

179+ $16.63

249+ $16.41

499+ $16.18

699+ $15.96

999+ $15.52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: KSM - Good Quality
Inside Diameter:: 17mm
Outside Diameter:: 40mm
Width:: 17.5mm
Seals / Shields:: Rubber Sealed

Technical

---	Bearing Dimensions
d	17mm
D	40mm
B	17.5mm
---	Abutment Dimensions
a	24mm
r1r2 min	0.6mm
r1r2 max	0.6mm
Da min	22mm
da max	35mm
---	Speeds, Weights and Loads
Basic Load Raiting Dynamic Cr	12800 N
Basic Static Load Raiting Cor	7900 N
Limiting Speed in Grease	10000 rpm
Limiting Speed in Oil	15000 rpm
Weight	0.096 kg
