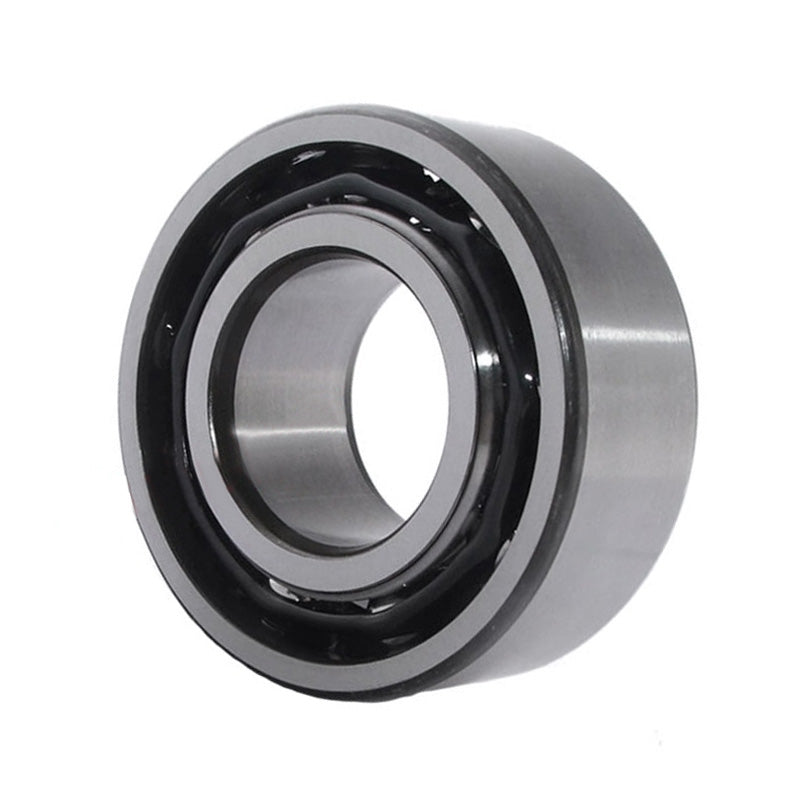

• KSM 5209 Open Double Row Angular Contact Ball Bearing 45x85x30.2mm
1 1

SKU: 5209-KSM

KSM 5209 Open Double Row Angular Contact Ball Bearing 45x85x30.2mm

KSM 5209 Open Double Row Angular Contact Ball Bearing 45x85x30.2mm
$53.79 ex VAT
$53.79 ex VAT
Sale Sold out

Equivalent to: 3209

In stock

Price Break
4+ $36.03
9+ $34.01
19+ $33.60
29+ $33.20
49+ $32.79
99+ $32.39
179+ $30.36
249+ $29.96
499+ $29.55
699+ $29.15
999+ $28.34

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Open Type Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Brand / Quality:
KSM - Good Quality
Inside Diameter:
45mm
Outside Diameter:
85mm
Width:
30.2mm
Seals / Shields:
None
Technical
--- Bearing Dimensions
d 45mm
D 85mm
B 30.2mm
--- Abutment Dimensions
a 50.5mm
r1r2 min 1.1mm
r1r2 max 1mm
Da min 52mm
da max 78mm
--- Speeds, Weights and Loads
Basic Load Raiting Dynamic Cr 18000 N
Basic Static Load Raiting Cor 37000 N
Limiting Speed in Grease 5000 rpm
Limiting Speed in Oil 6700 rpm
Weight 0.61 kg
