SKU: 5210-KSM

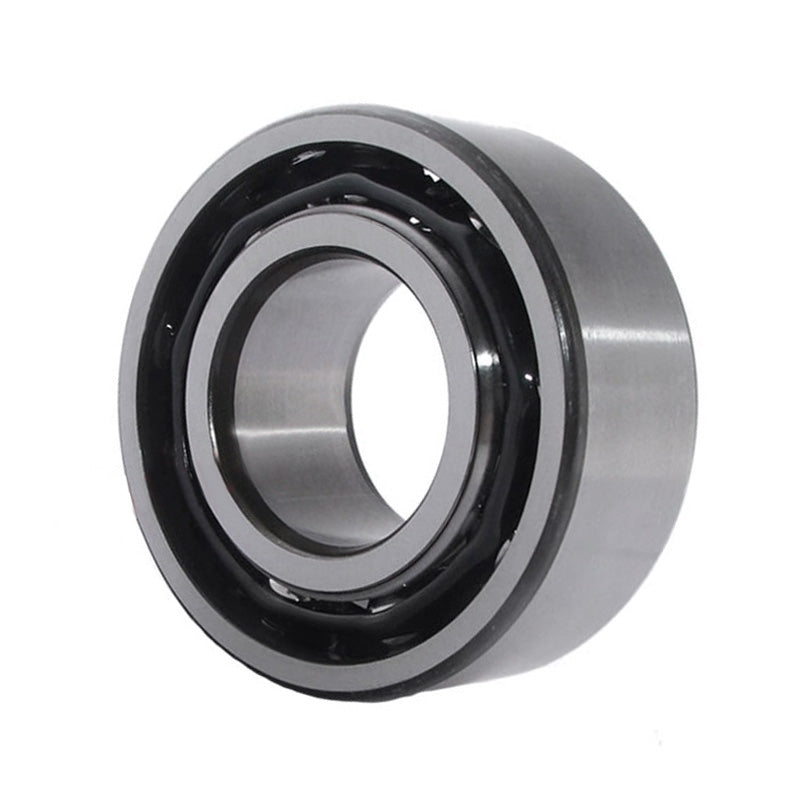

KSM 5210 Open Double Row Angular Contact Ball Bearing 50x90x30.2mm

Name: KSM 5210 Open Double Row Angular Contact Ball Bearing 50x90x30.2mm
Brand: KSM
SKU: 5210-KSM
Price: 53.79 USD
Availability: InStock

$53.79 ex VAT

Sale Sold out

Equivalent to: 3210

In stock

Price Break

4+ $36.03

9+ $34.01

19+ $33.60

29+ $33.20

49+ $32.79

99+ $32.39

179+ $30.36

249+ $29.96

499+ $29.55

699+ $29.15

999+ $28.34

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: KSM - Good Quality
Inside Diameter:: 50mm
Outside Diameter:: 90mm
Width:: 30.2mm
Seals / Shields:: None

Technical

---	Bearing Dimensions
d	50mm
D	90mm
B	30.2mm
---	Abutment Dimensions
a	54mm
r1r2 min	1.1mm
r1r2 max	1mm
Da min	57mm
da max	83mm
---	Speeds, Weights and Loads
Basic Load Raiting Dynamic Cr	51000 N
Basic Static Load Raiting Cor	12000 N
Limiting Speed in Grease	1000 rpm
Limiting Speed in Oil	5300 rpm
Weight	0.689 kg
