SKU: 52306.MB

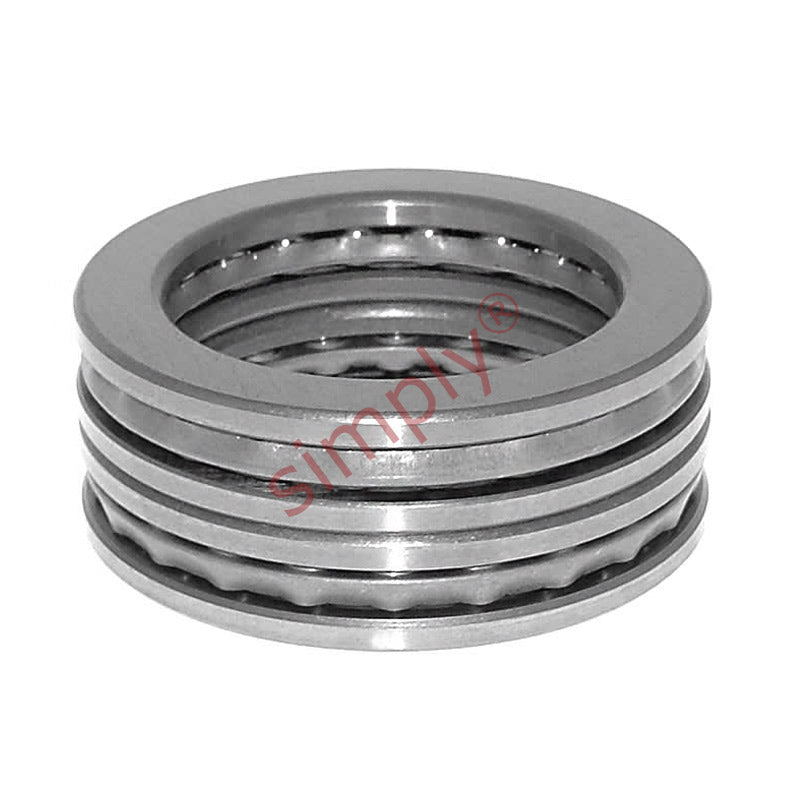

52306 Double Thrust Ball Bearing with Flat Seats 25x60x38mm
- Regular price
- $99.29 ex VAT
- Sale price
- $99.29
- Regular price
-
Not in stock
Quantity Price Breaks
10
$88.37
19
$83.40
29
$82.41
39
$81.42
49
$80.42
74
$79.43
99
$74.47
199
$73.47
249
$72.48
499
$71.49
999
$69.50
SKU:
52306.MB
52306 Double Thrust Ball Bearing with Flat Seats 25x60x38mm
- Regular price
- $99.29 ex VAT
- Sale price
- $99.29
- Regular price
-
Description
|
Double Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of five parts, a top, bottom and middle plate with annular grooves in them and two caged ball bearing assemblies that are sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in two directions. Clearance is provided in the bore of Centre of the raceways to allow for alignment. |
Technical
| d | = | 25mm |
| D | = | 60mm |
| H | = | 38mm |
| Dynamic load C | = | 37.7 kN |
| Static load Co | = | 71 kN |
| Fatigue load Pu | = | 2.65 kN |
| Minimum load factor A | = | 0.026 |
| Reference speed | = | 3800 rpm |
| Limiting speed | = | 5300 rpm |
| Weight | = | 0.47 kg |
| D1 | = | 32mm |
| B | = | 9mm |
| r1r2 min | = | 1mm |
| r3r4 min | = | 0.3mm |
| da | = | 30mm |
| Da max | = | 42mm |
| ra max | = | 1mm |
| rb max | = | 0.3mm |
