SKU: 5303-2RS-KSM

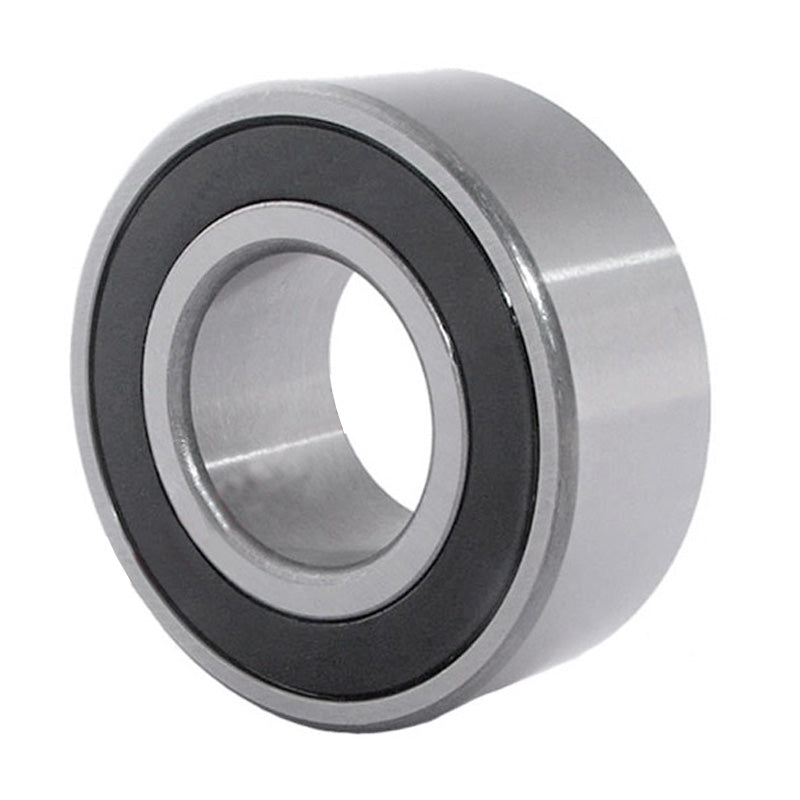

KSM 53032RS Rubber Sealed Double Row Angular Contact Ball Bearing 17x47x22.2mm

Name: KSM 53032RS Rubber Sealed Double Row Angular Contact Ball Bearing 17x47x22.2mm
Brand: KSM
SKU: 5303-2RS-KSM
Price: 37.00 USD
Availability: InStock

$37.00 ex VAT

Sale Sold out

Equivalent to: 33032RS

In stock

Price Break

4+ $24.78

9+ $23.39

19+ $23.11

29+ $22.83

49+ $22.56

99+ $22.28

179+ $20.88

249+ $20.61

499+ $20.33

699+ $20.05

999+ $19.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: KSM - Good Quality
Inside Diameter:: 17mm
Outside Diameter:: 47mm
Width:: 22.2mm
Seals / Shields:: Rubber Sealed

Technical

---	Bearing Dimensions
d	17mm
D	47mm
B	22.2mm
---	Abutment Dimensions
a	28.5mm
r1r2 min	1mm
r1r2 max	1mm
Da min	23mm
da max	41mm
---	Speeds, Weights and Loads
Basic Load Raiting Dynamic Cr	20100 N
Basic Static Load Raiting Cor	12100 N
Limiting Speed in Grease	9000 rpm
Limiting Speed in Oil	12000 rpm
Weight	0.181 kg
