SKU: 5308-2RS-KSM

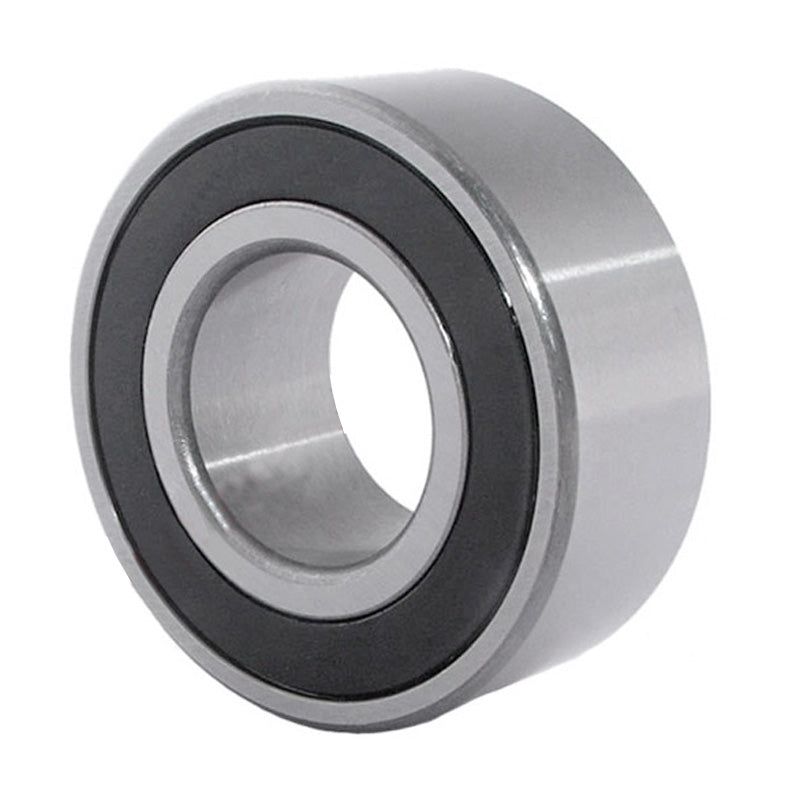

KSM 53082RS Rubber Sealed Double Row Angular Contact Ball Bearing 40x90x36.5mm

Name: KSM 53082RS Rubber Sealed Double Row Angular Contact Ball Bearing 40x90x36.5mm
Brand: KSM
SKU: 5308-2RS-KSM
Price: 77.14 USD
Availability: InStock

$77.14 ex VAT

Sale Sold out

Equivalent to: 33082RS

In stock

Price Break

4+ $51.68

9+ $48.77

19+ $48.19

29+ $47.61

49+ $47.03

99+ $46.45

179+ $43.55

249+ $42.97

499+ $42.39

699+ $41.81

999+ $40.64

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: KSM - Good Quality
Inside Diameter:: 40mm
Outside Diameter:: 90mm
Width:: 36.5mm
Seals / Shields:: Rubber Sealed

Technical

---	Bearing Dimensions
d	40mm
D	90mm
B	36.5mm
---	Abutment Dimensions
a	53.5mm
r1r2 min	1.5mm
r1r2 max	1.5mm
Da min	48.5mm
da max	81.5mm
---	Speeds, Weights and Loads
Basic Load Raiting Dynamic Cr	60500 N
Basic Static Load Raiting Cor	44000 N
Limiting Speed in Grease	4400 rpm
Limiting Speed in Oil	5900 rpm
Weight	1.01 kg
