SKU: 53206+U206-EU
53206 Budget Single Thrust Ball Bearing with Spherical Housing Seat U206 30x52x20mm
- Regular price
- $32.66 ex VAT
- Sale price
- $32.66
- Regular price
-
In stock
Quantity Price Breaks
10
$29.07
19
$27.43
29
$27.11
39
$26.78
49
$26.45
74
$26.13
99
$24.50
199
$24.17
249
$23.84
499
$23.52
999
$22.86
SKU:
53206+U206-EU
53206 Budget Single Thrust Ball Bearing with Spherical Housing Seat U206 30x52x20mm
- Regular price
- $32.66 ex VAT
- Sale price
- $32.66
- Regular price
-
Description
|
Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |

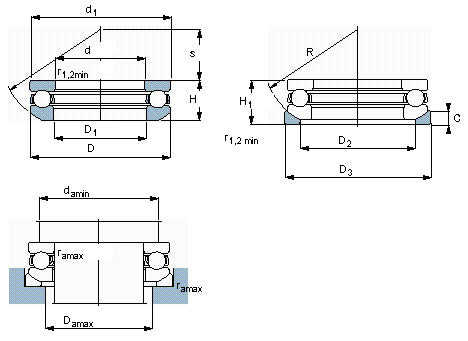

Technical
| d | = | 30mm |
| D | = | 52mm |
| H1 | = | 20mm |
| Dynamic load C | = | 25.5 kN |
| Static load Co | = | 51 kN |
| Fatigue load limit Pu | = | 1.9 kN |
| Minimum load factor A | = | 0.013 |
| Reference speed | = | 4800 rpm |
| Limiting Speed | = | 6700 rpm |
| Weight | = | 0.18 kg |
| Seating Washer | = | U206 |
| d1 | = | 52mm |
| D1 | = | 32mm |
| D2 | = | 42mm |
| D3 | = | 55mm |
| H | = | 17.8mm |
| C | = | 5.5mm |
| R | = | 45mm |
| s | = | 22mm |
| r1r2 min | = | 0.6mm |
| da max | = | 43mm |
| Da max | = | 42mm |
| ra max | = | 0.6mm |
