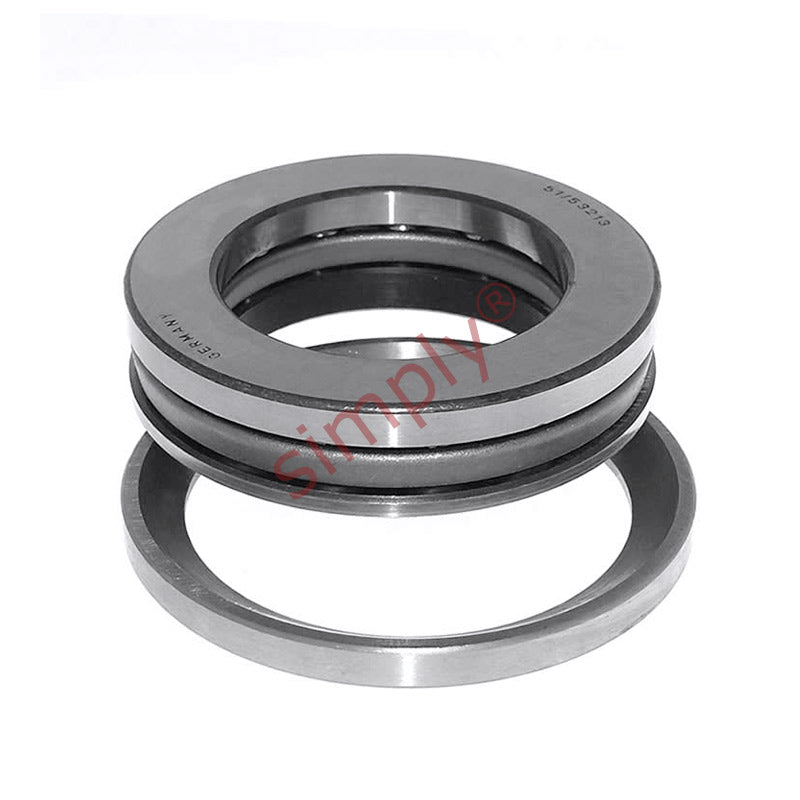

• 53208 Budget Single Thrust Ball Bearing with Spherical Housing Seat U208 40x68x23mm
1 1

SKU: 53208?EU

53208 Budget Single Thrust Ball Bearing with Spherical Housing Seat U208 40x68x23mm

53208 Budget Single Thrust Ball Bearing with Spherical Housing Seat U208 40x68x23mm
$40.21 ex VAT
$40.21 ex VAT
Sale Sold out

In stock

Price Break
10+ $26.93
19+ $25.42
29+ $25.11
39+ $24.81
49+ $24.51
74+ $24.20
99+ $22.69
199+ $22.39
249+ $22.09
499+ $21.78
999+ $21.18

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
40mm
Outside Diameter:
68mm
Width:
23mm
Technical
d 40mm
D 68mm
H1 23mm
Dynamic load C 46.8 kN
Static load Co 106 kN
Fatigue load limit Pu 4 kN
Minimum load factor A 0.058
Reference speed 3800 rpm
Limiting Speed 5300 rpm
Weight 0.35 kg
Seating Washer U208
d1 68mm
D1 42mm
D2 55mm
D3 72mm
H 20.3mm
C 7mm
R 56mm
s 28.5mm
r1r2 min 1mm
da max 57mm
Da max 55mm
ra max 1mm
