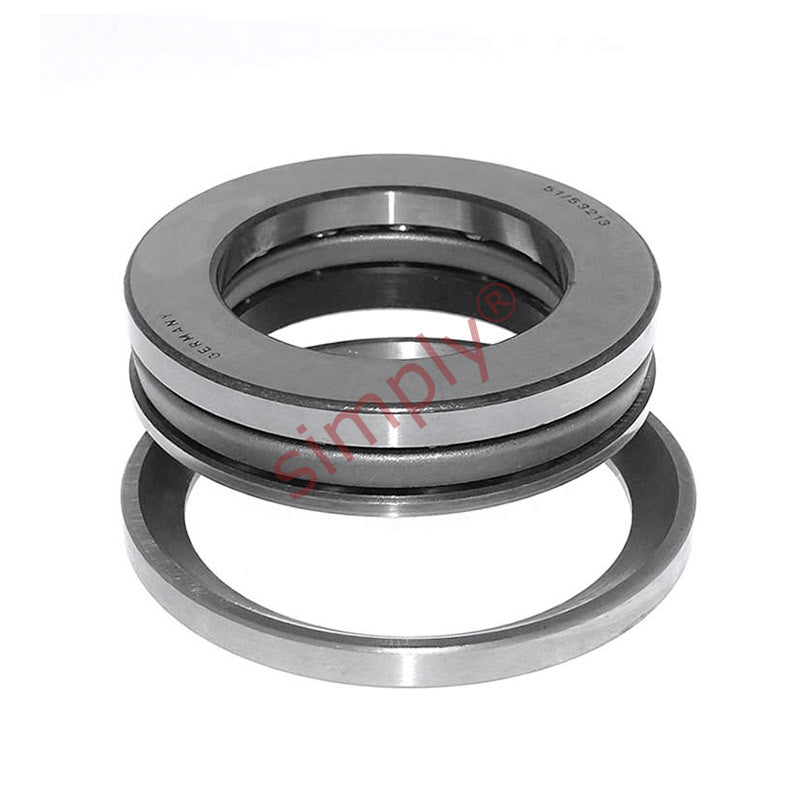

• 53213 Budget Single Thrust Ball Bearing with Spherical Housing Seat U213 65x100x32mm
1 1

SKU: 53213?EU

53213 Budget Single Thrust Ball Bearing with Spherical Housing Seat U213 65x100x32mm

53213 Budget Single Thrust Ball Bearing with Spherical Housing Seat U213 65x100x32mm
$86.45 ex VAT
$86.45 ex VAT
Sale Sold out

In stock

Price Break
10+ $57.91
19+ $54.65
29+ $54.00
39+ $53.35
49+ $52.70
74+ $52.05
99+ $48.80
199+ $48.15
249+ $47.50
499+ $46.85
999+ $45.54

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
65mm
Outside Diameter:
100mm
Width:
32mm
Technical
d 65mm
D 100mm
H1 32mm
Dynamic load C 63.7 kN
Static load Co 163 kN
Fatigue load limit Pu 6 kN
Minimum load factor A 0.14
Reference speed 2600 rpm
Limiting Speed 3600 rpm
Weight 0.91 kg
Seating Washer U213
d1 100mm
D1 67mm
D2 82mm
D3 105mm
H 28.7mm
C 9mm
R 80mm
s 40mm
r1r2 min 1mm
da max 86mm
Da max 82mm
ra max 1mm
