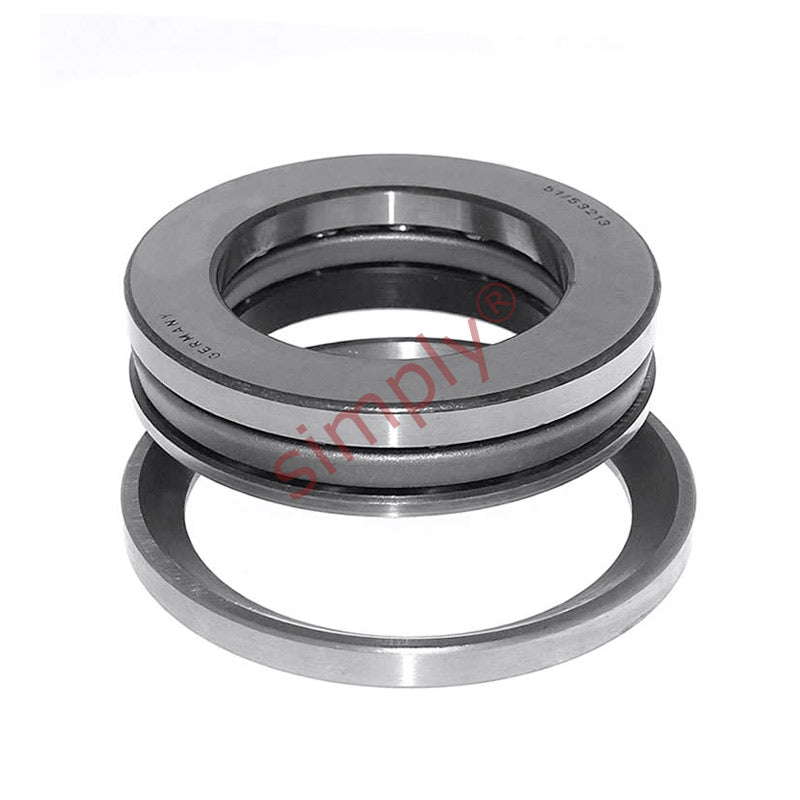

• 53214 Budget Single Thrust Ball Bearing with Spherical Housing Seat U214 70x105x32mm
1 1

SKU: 53214?EU

53214 Budget Single Thrust Ball Bearing with Spherical Housing Seat U214 70x105x32mm

53214 Budget Single Thrust Ball Bearing with Spherical Housing Seat U214 70x105x32mm
$98.11 ex VAT
$98.11 ex VAT
Sale Sold out

In stock

Price Break
10+ $65.72
19+ $62.03
29+ $61.29
39+ $60.55
49+ $59.81
74+ $59.08
99+ $55.38
199+ $54.65
249+ $53.91
499+ $53.17
999+ $51.69

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
70mm
Outside Diameter:
105mm
Width:
32mm
Technical
d 70mm
D 105mm
H1 32mm
Dynamic load C 65 kN
Static load Co 173 kN
Fatigue load limit Pu 6.4 kN
Minimum load factor A 0.16
Reference speed 2600 rpm
Limiting Speed 3600 rpm
Weight 0.97 kg
Seating Washer U214
d1 105mm
D1 72mm
D2 88mm
D3 110mm
H 28.8mm
C 9mm
R 80mm
s 38mm
r1r2 min 1mm
da max 91mm
Da max 88mm
ra max 1mm
