SKU: 53218?EU

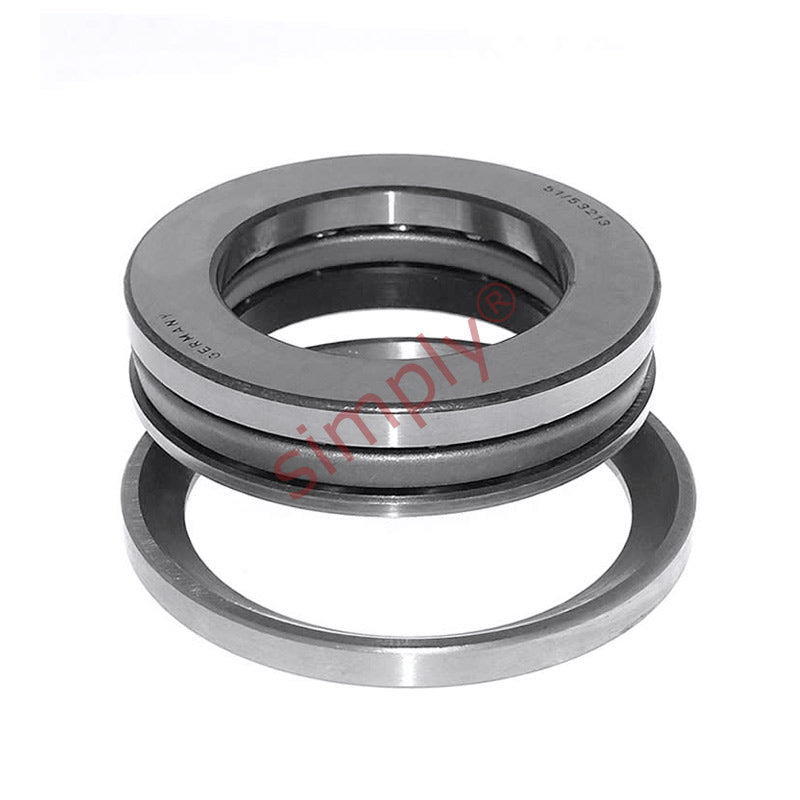

53218 Budget Single Thrust Ball Bearing with Spherical Housing Seat U218 90x135x42mm

Name: 53218 Budget Single Thrust Ball Bearing with Spherical Housing Seat U218 90x135x42mm
Brand: Gen
SKU: 53218?EU
Price: 171.03 USD
Availability: InStock

$171.03 ex VAT

Sale Sold out

In stock

Price Break

10+ $114.56

19+ $108.13

29+ $106.84

39+ $105.55

49+ $104.26

74+ $102.98

99+ $96.54

199+ $95.25

249+ $93.97

499+ $92.68

999+ $90.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 90mm
Outside Diameter:: 135mm
Width:: 42mm

Technical

d	90mm
D	135mm
H1	42mm
Dynamic load C	119 kN
Static load Co	325 kN
Fatigue load limit Pu	11.4 kN
Minimum load factor A	0.55
Reference speed	2000 rpm
Limiting Speed	2800 rpm
Weight	2.1 kg
Seating Washer	U218
d1	135mm
D1	93mm
D2	110mm
D3	140mm
H	38.5mm
C	13.5mm
R	100mm
s	45mm
r1r2 min	1.1mm
da max	117mm
Da max	110mm
ra max	1mm
