• 53311 Budget Single Thrust Ball Bearing with Spherical Housing Seat U311 55x105x42mm
1 1

SKU: 53311?EU

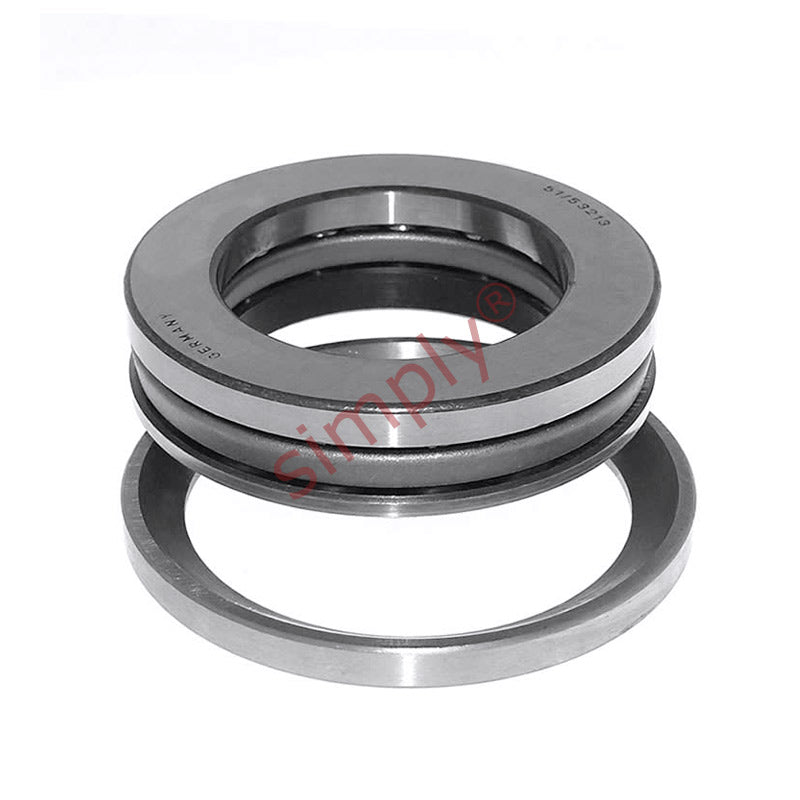

53311 Budget Single Thrust Ball Bearing with Spherical Housing Seat U311 55x105x42mm

53311 Budget Single Thrust Ball Bearing with Spherical Housing Seat U311 55x105x42mm
$131.89 ex VAT
$131.89 ex VAT
Sale Sold out

In stock

Price Break
10+ $88.34
19+ $83.38
29+ $82.39
39+ $81.39
49+ $80.40
74+ $79.41
99+ $74.44
199+ $73.45
249+ $72.46
499+ $71.47
999+ $69.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
55mm
Outside Diameter:
105mm
Width:
42mm
Technical
d 55mm
D 105mm
H1 42mm
Dynamic load C 104 kN
Static load Co 224 kN
Fatigue load limit Pu 8.3 kN
Minimum load factor A 0.26
Reference speed 2200 rpm
Limiting Speed 3200 rpm
Weight 1.68 kg
Seating Washer U311
d1 105mm
D1 57mm
D2 80mm
D3 110mm
H 39.3mm
C 11.5mm
R 80mm
s 30mm
r1r2 min 1.1mm
da max 85mm
Da max 80mm
ra max 1mm
