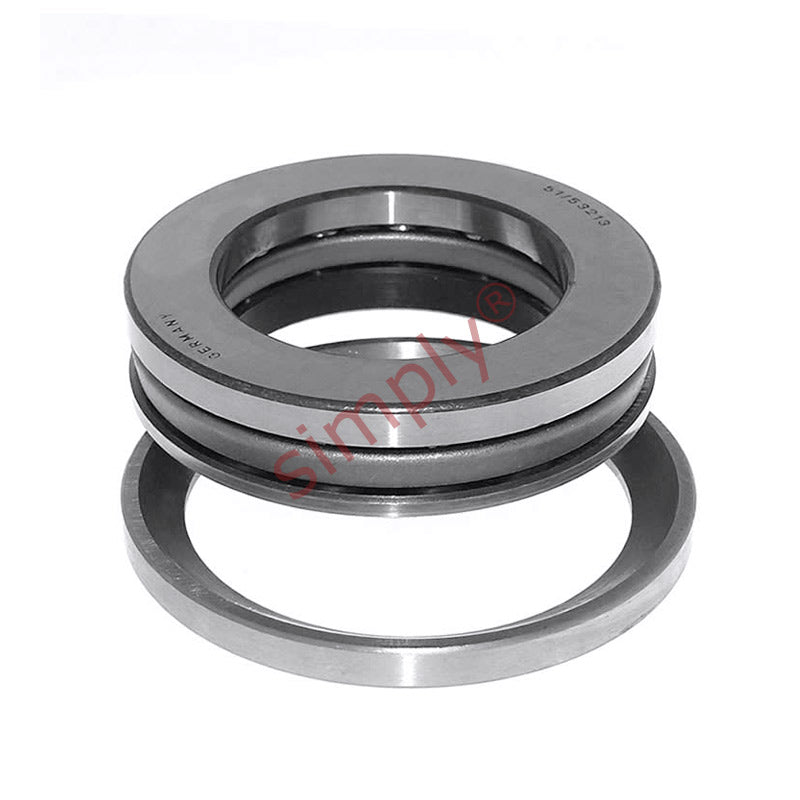

• 53312 Budget Single Thrust Ball Bearing with Spherical Housing Seat U312 60x110x42mm
1 1

SKU: 53312?EU

53312 Budget Single Thrust Ball Bearing with Spherical Housing Seat U312 60x110x42mm

53312 Budget Single Thrust Ball Bearing with Spherical Housing Seat U312 60x110x42mm
$137.96 ex VAT
$137.96 ex VAT
Sale Sold out

In stock

Price Break
10+ $92.41
19+ $87.22
29+ $86.18
39+ $85.14
49+ $84.10
74+ $83.06
99+ $77.87
199+ $76.83
249+ $75.79
499+ $74.76
999+ $72.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
60mm
Outside Diameter:
110mm
Width:
42mm
Technical
d 60mm
D 110mm
H1 42mm
Dynamic load C 101 kN
Static load Co 224 kN
Fatigue load limit Pu 8.3 kN
Minimum load factor A 0.26
Reference speed 2200 rpm
Limiting Speed 3000 rpm
Weight 1.71 kg
Seating Washer U312
d1 110mm
D1 62mm
D2 85mm
D3 115mm
H 38.3mm
C 11.5mm
R 90mm
s 41mm
r1r2 min 1.1mm
da max 90mm
Da max 85mm
ra max 1mm
