SKU: 534XH-500-61

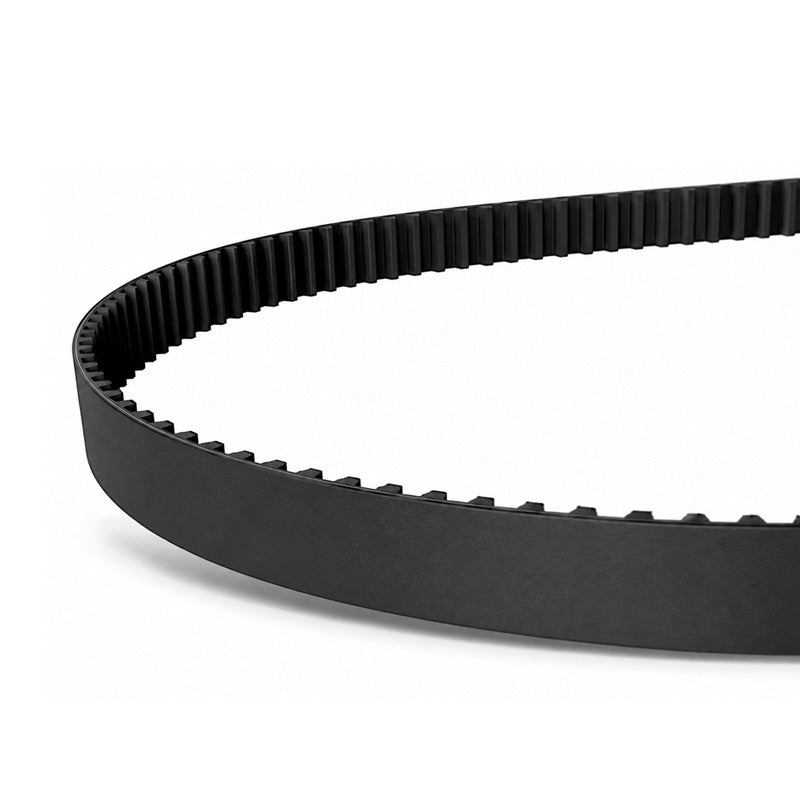

534XH500 Major Brand Synchronous Toothed Belt 5.00 inch Wide 53.4 inch Length 61 Teeth Allow 2-3 Days
- Regular price
- $479.86 ex VAT
- Sale price
- $479.86
- Regular price
-
Not in stock
Quantity Price Breaks
3
$427.08
5
$403.08
10
$398.28
15
$393.49
20
$388.69
30
$383.89
40
$359.90
50
$355.10
60
$350.30
75
$345.50
100
$335.90
SKU:
534XH-500-61
534XH500 Major Brand Synchronous Toothed Belt 5.00 inch Wide 53.4 inch Length 61 Teeth Allow 2-3 Days
- Regular price
- $479.86 ex VAT
- Sale price
- $479.86
- Regular price
-
Description
|
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous
transmission throughout the entire field of drive technology. They enable
purpose-made solutions to be realized effectively and economically. Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers. Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance. |
Technical
| Belt width | = | 5.00 inch = 127.00mm |
| Pitch length | = | 53.4 inch = 1356.36mm |
| Number of teeth | = | 61 |
| Tooth pitch t | = | 0.875 inch |
| Flank angle f | = | 40 degrees |
| Tooth height h< | = | sub> |
| t< | = | /sub> |
| = | 0.25 inch | |
| Pitch zone u | = | 0.055 inch |
