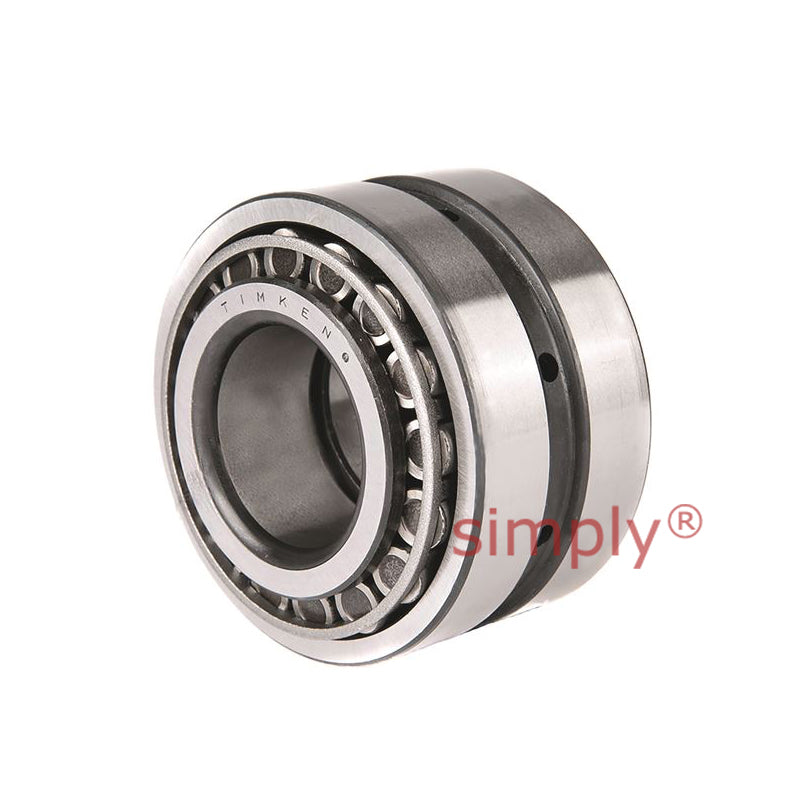

Timken 55187/55444D/X1S55187 TDO Double Outer Race Taper Roller Bearing 1.875x4.4375x2.5625x1.8125 inch
Timken 55187/55444D/X1S55187 TDO Double Outer Race Taper Roller Bearing 1.875x4.4375x2.5625x1.8125 inch
Out of stock
Description
Description

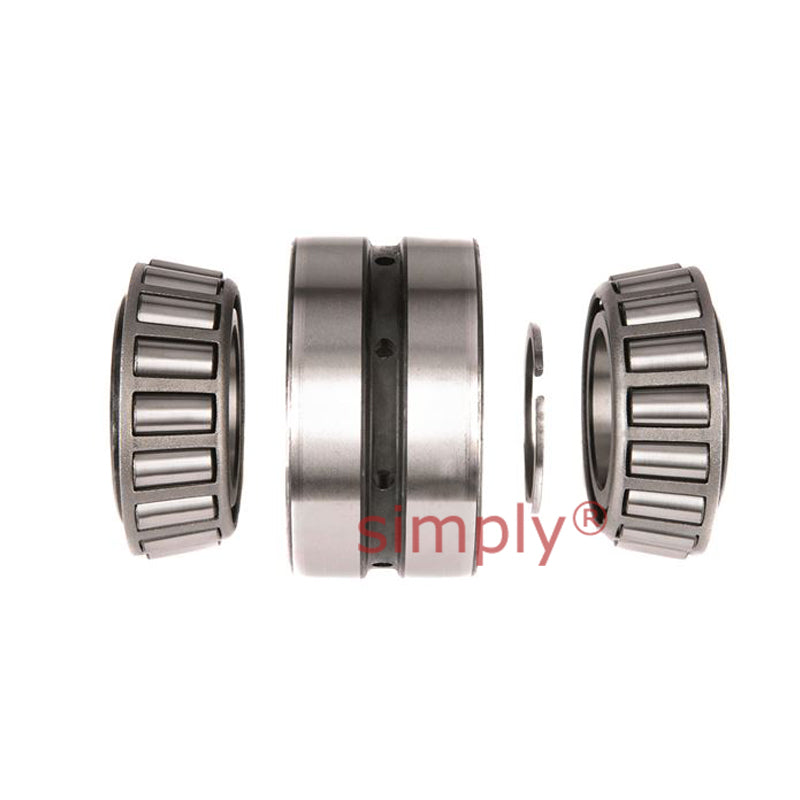

Timken Taper Roller Bearings: These bearings have a double tapered outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 47.63mm = 1.875 inch
- Outside Diameter:
- 112.71mm = 4.4375 inch
- Width:
- 65.09mm = 2.5625 inch
Technical
Technical
| d | 47.625mm = 1.875 inch |
|---|---|
| D | 112.712mm = 4.4375 inch |
| T | 65.088mm = 2.5625 inch |
| C | 46.038mm = 1.8125 inch |
| Dynamic (1) C1 | 172000N |
| Factors (5) e | 0.88 |
| Factors (5) Y1 | 0.76 |
| Factors (5) Y2 | 1.14 |
| Dynamic (2) C90 | 25500N |
| Dynamic (2) Ca90 | 38600N |
| Dynamic (2) C90(2) | 44500N |
| Factors (5) K | 0.66 |
| Shaft max shaft fillet radius R(3) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter db | 69mm = 2.72 inch |
| Housing max shaft fillet radius r(3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Da | 105mm = 4.13 inch |
| G1 | 36.8 |
| G2 | 13.2 |
| Cg | 0.1085 |
