SKU: 560SPA4-MB

560X4SPA 560mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)

560X4SPA 560mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
$211.74 ex VAT
$211.74 ex VAT
Sale Sold out

In stock

Price Break
3+ $141.83
5+ $133.87
9+ $132.27
19+ $130.68
49+ $129.09
74+ $127.49
99+ $119.52
199+ $117.93
249+ $116.34
499+ $114.74
999+ $111.56

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
4
Outside Diameter:
565.5mm
Pitch Diameter:
560mm
Max Bore:
90mm

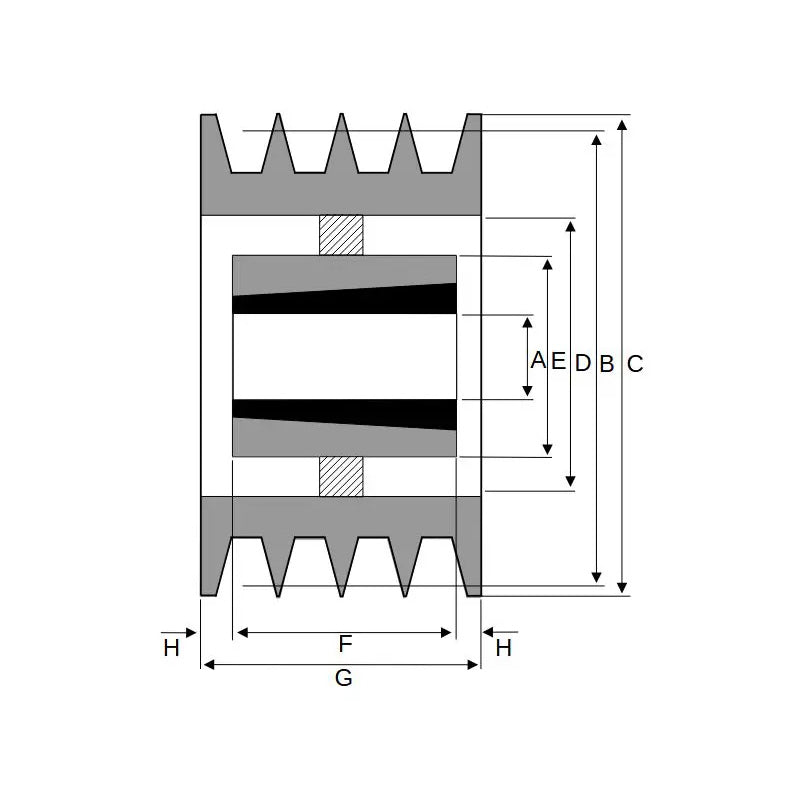

Technical
Number of Grooves 4
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3535+tapered+locking+bush">3535 Click Here</a>
Pitch Diameter B 560mm
Overall Outer Diameter C 565.5mm
Max Bore A 90mm
Outer Hub Diameter E mm
Overall Sheave Depth F 65mm
Bush Seat Length G 89mm
Inner Recess Length H 12mm
