• 560X6SPA 560mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
  • 560X6SPA 560mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
1 2

SKU: 560SPA6-MB

560X6SPA 560mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)

560X6SPA 560mm Pitch Diameter SPA Section Tapered Locking Bush Type Pulley with 6 Grooves (Bush not Incl.)
$310.90 ex VAT
$310.90 ex VAT
Sale Sold out

In stock

Price Break
3+ $208.25
5+ $196.55
9+ $194.21
19+ $191.87
49+ $189.53
74+ $187.19
99+ $175.49
199+ $173.15
249+ $170.81
499+ $168.47
999+ $163.79

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
6
Outside Diameter:
565.5mm
Pitch Diameter:
560mm
Max Bore:
90mm

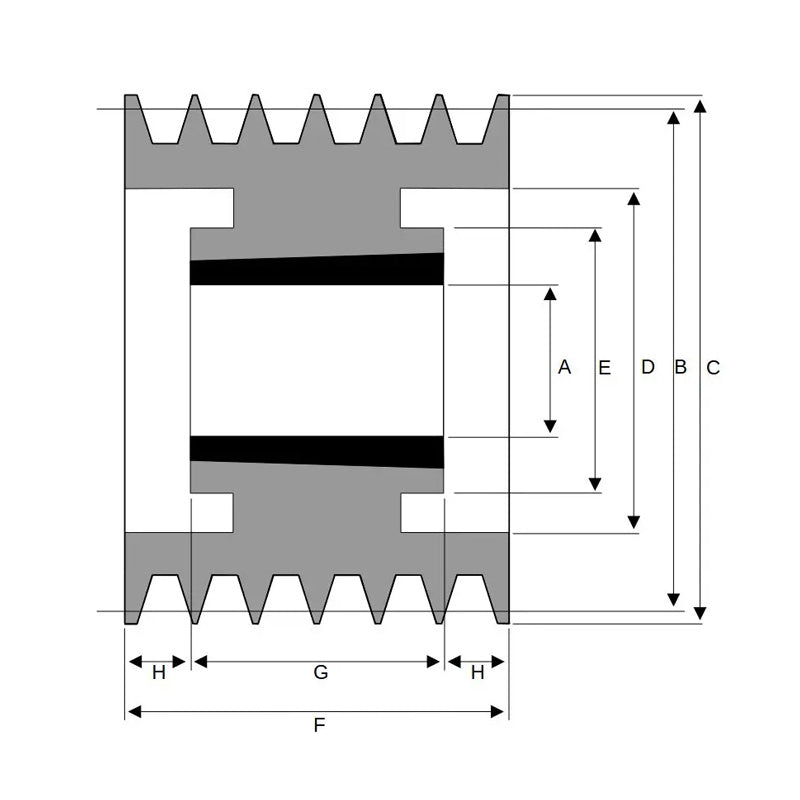

Technical
Number of Grooves 6
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3535+tapered+locking+bush">3535 Click Here</a>
Pitch Diameter B 560mm
Overall Outer Diameter C 565.5mm
Max Bore A 90mm
Outer Hub Diameter E mm
Overall Sheave Depth F 95mm
Bush Seat Length G 89mm
Inner Recess Length H 6mm
