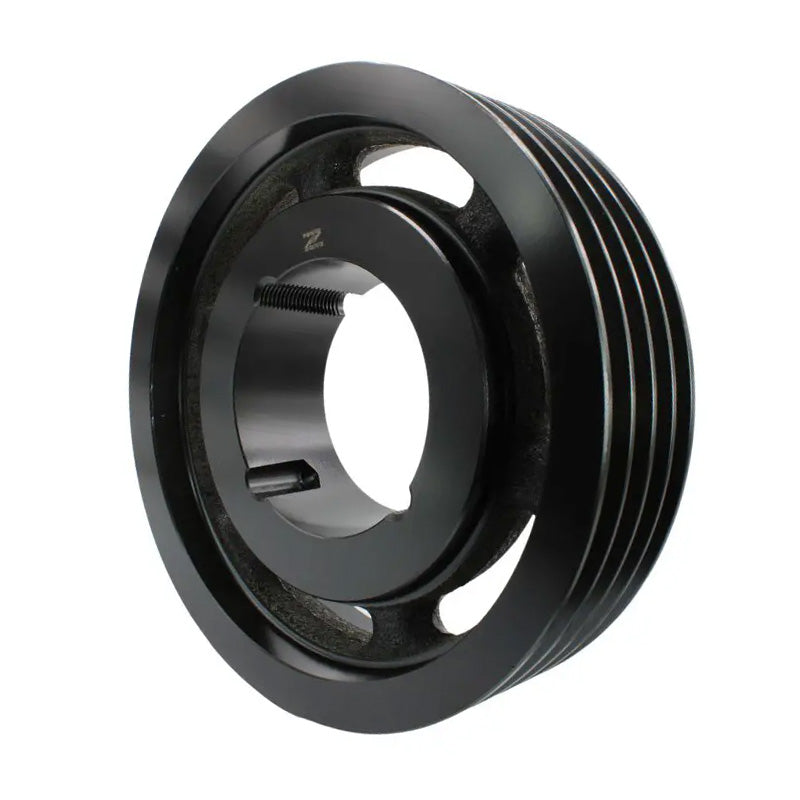

• 560X4SPB 560mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
  • 560X4SPB 560mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
1 2

SKU: 560SPB4-MB

560X4SPB 560mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)

560X4SPB 560mm Pitch Diameter SPB Section Tapered Locking Bush Type Pulley with 4 Grooves (Bush not Incl.)
$275.76 ex VAT
$275.76 ex VAT
Sale Sold out

In stock

Price Break
3+ $184.71
5+ $174.33
9+ $172.26
19+ $170.18
49+ $168.11
74+ $166.03
99+ $155.65
199+ $153.58
249+ $151.50
499+ $149.43
999+ $145.28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Grooves:
4
Outside Diameter:
567mm
Pitch Diameter:
560mm
Max Bore:
90mm
Technical
Number of Grooves 4
Bush <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=3535+tapered+locking+bush">3535 Click Here</a>
Pitch Diameter B 560mm
Overall Outer Diameter C 567mm
Max Bore A 90mm
Overall Sheave Depth F 82mm
Bush Seat Length G 89mm
Inner Recess Length H 7mm
